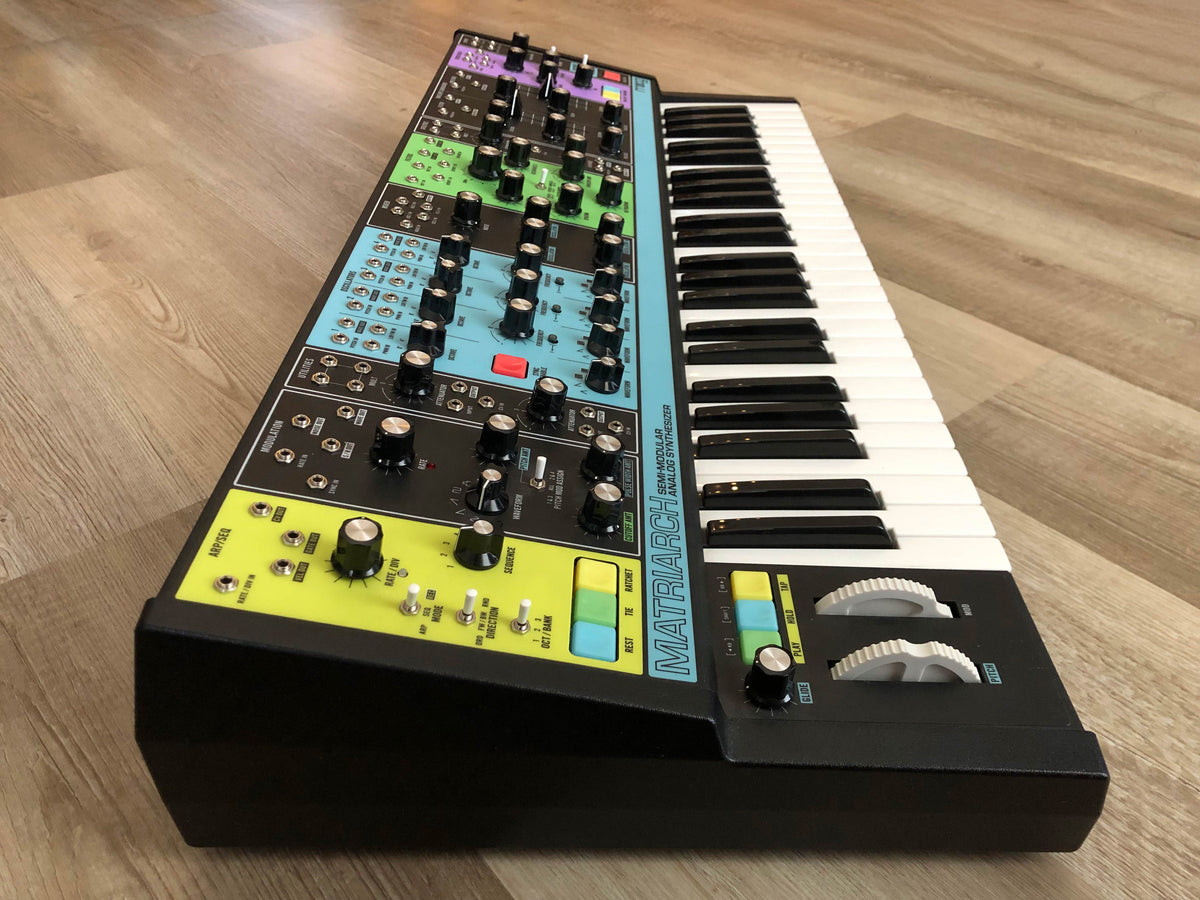

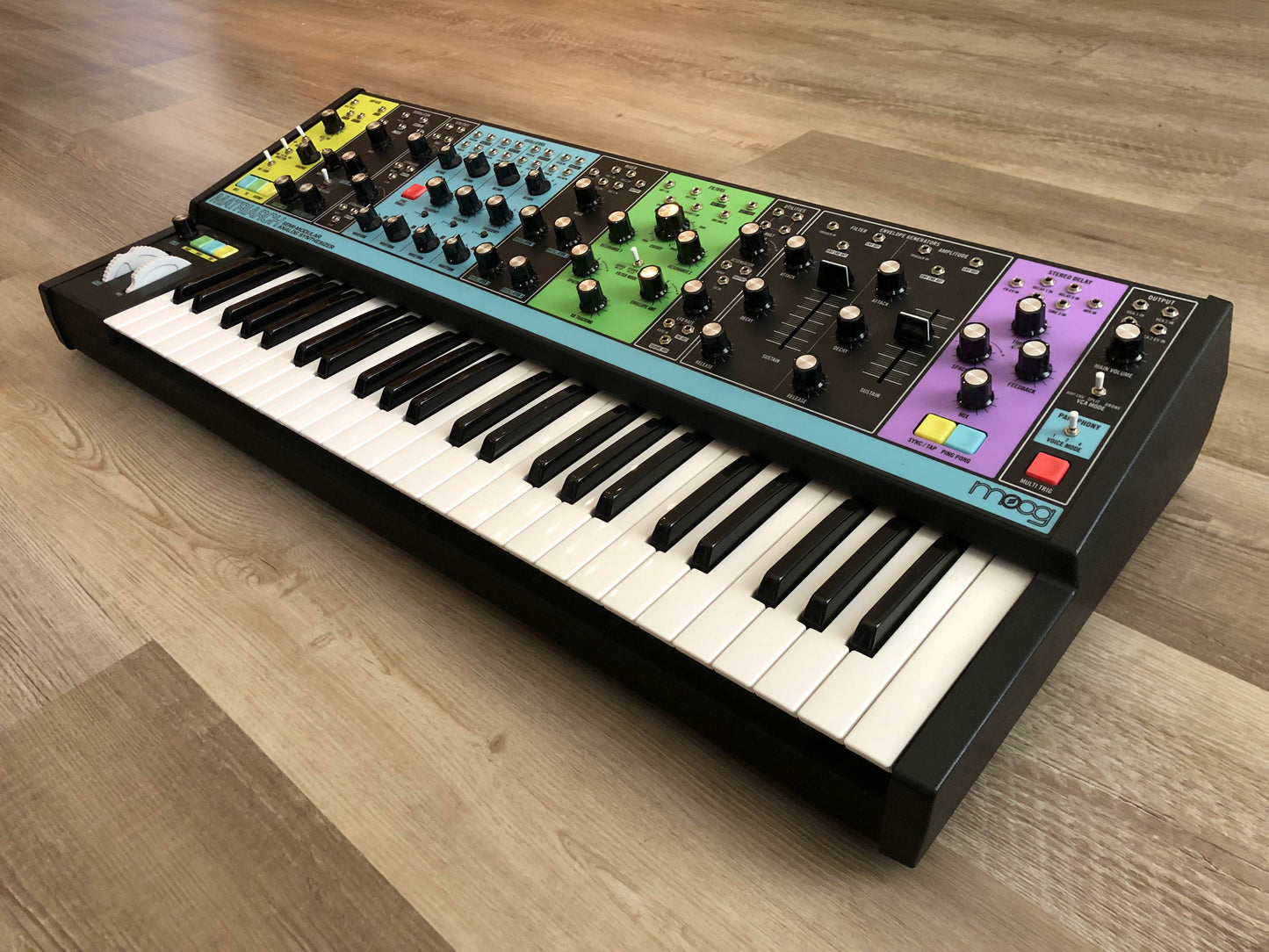

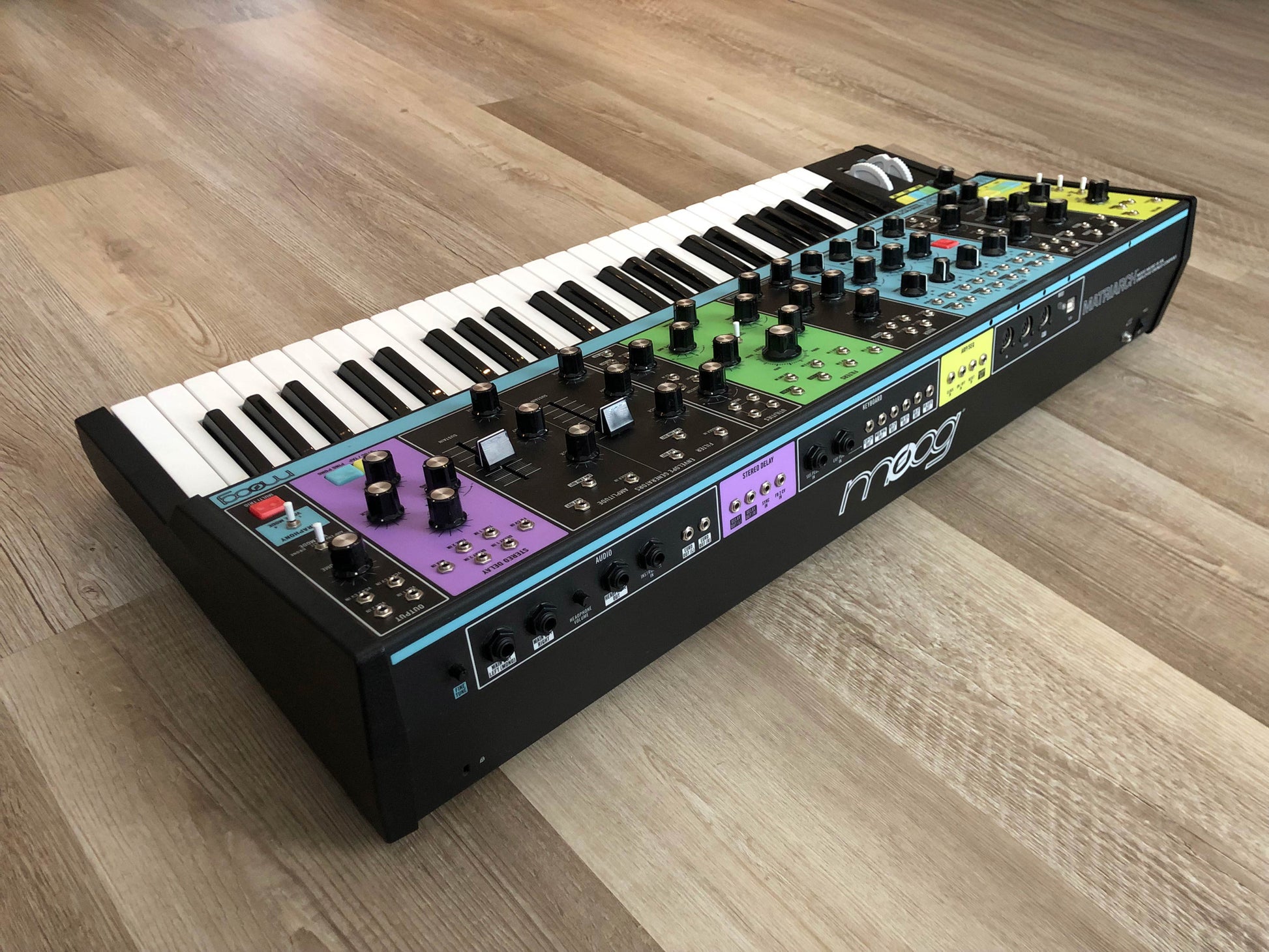

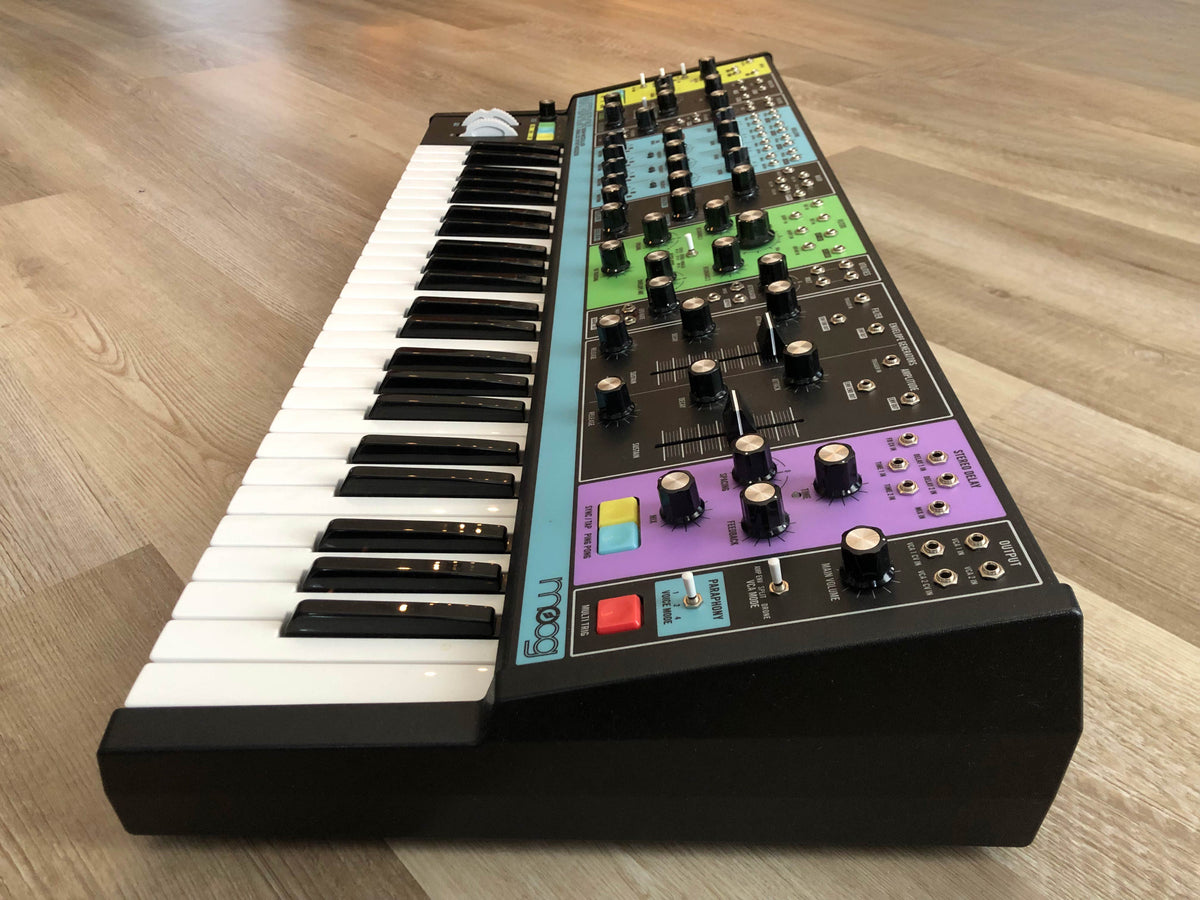

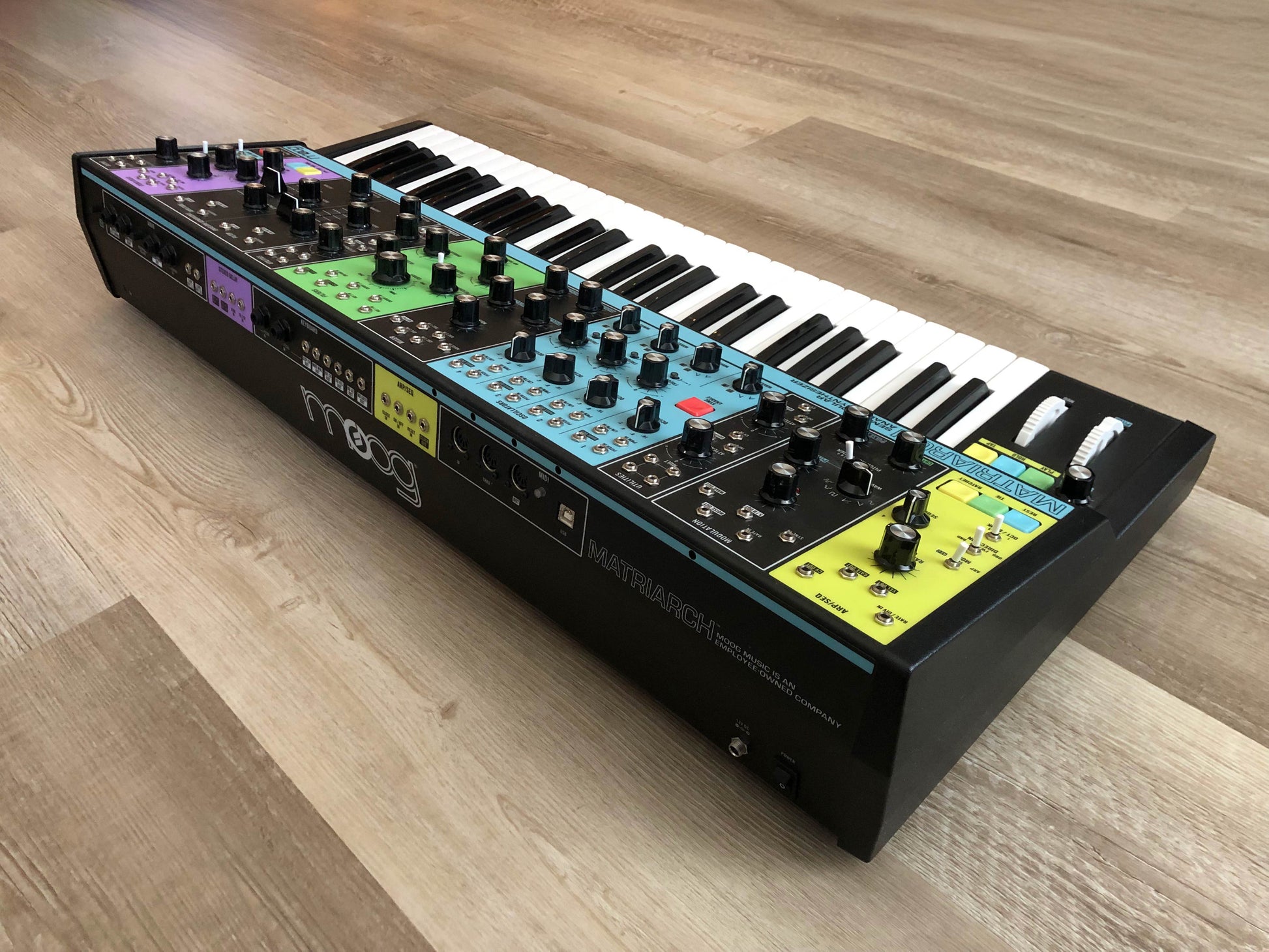

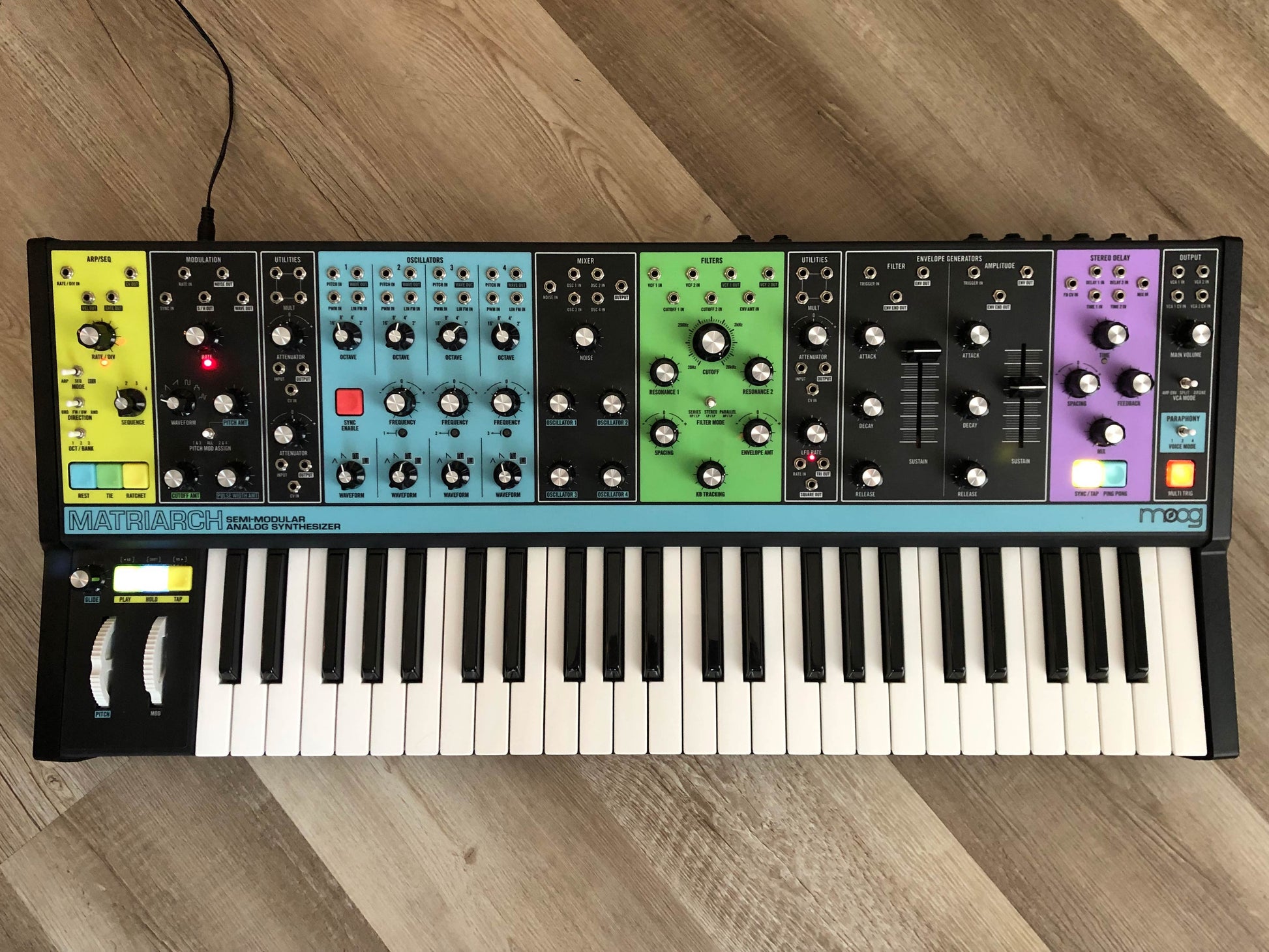

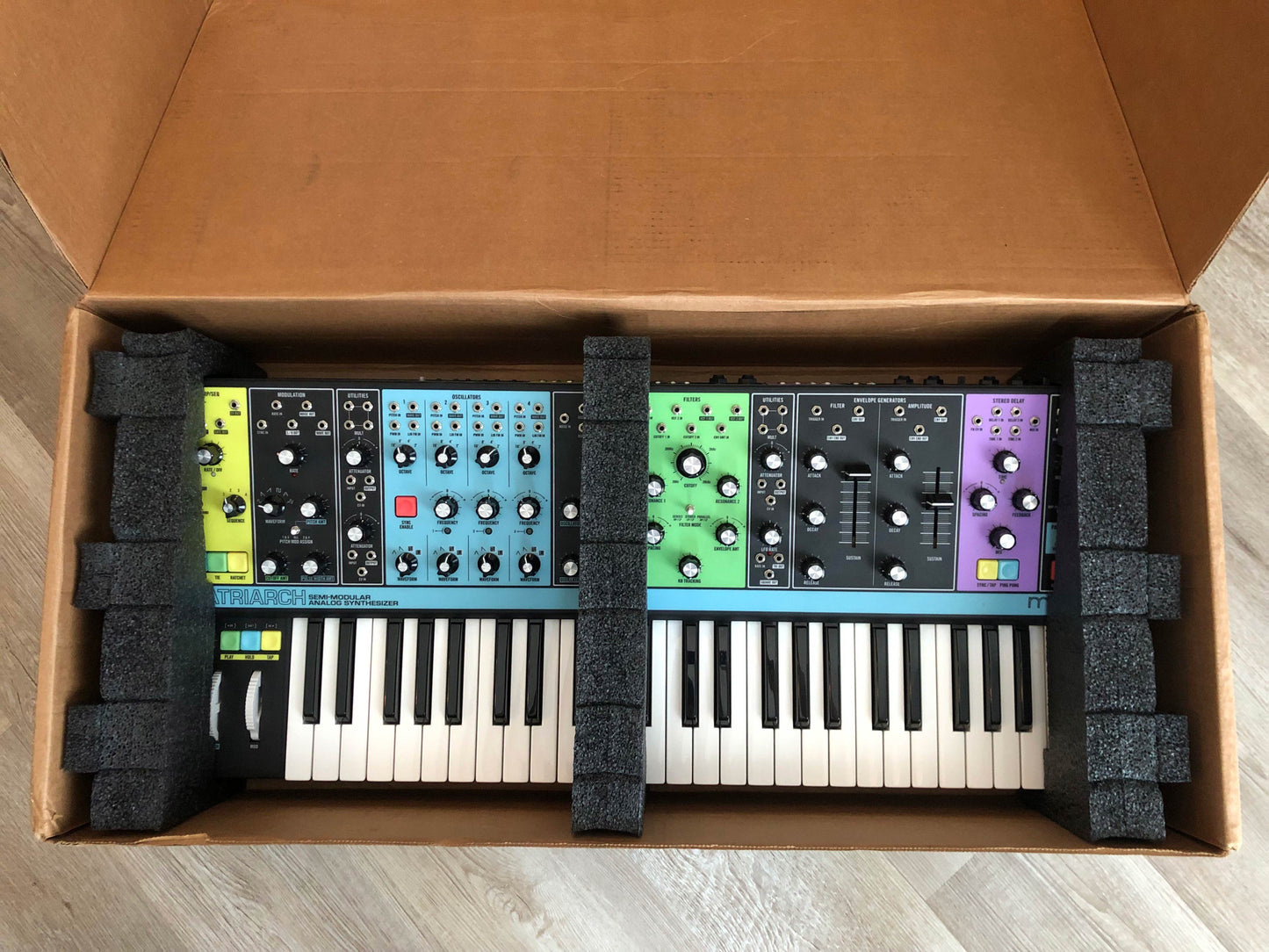

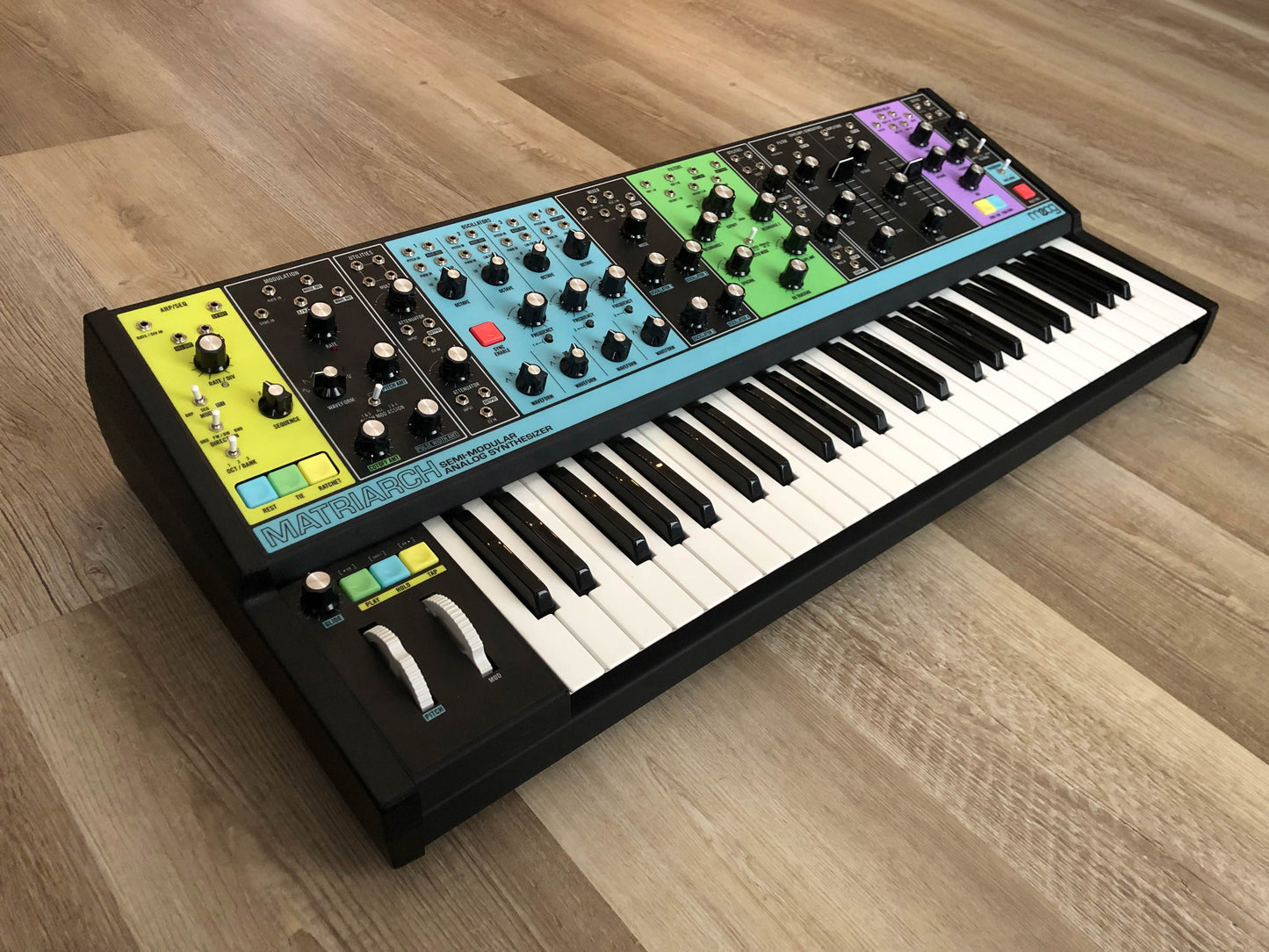

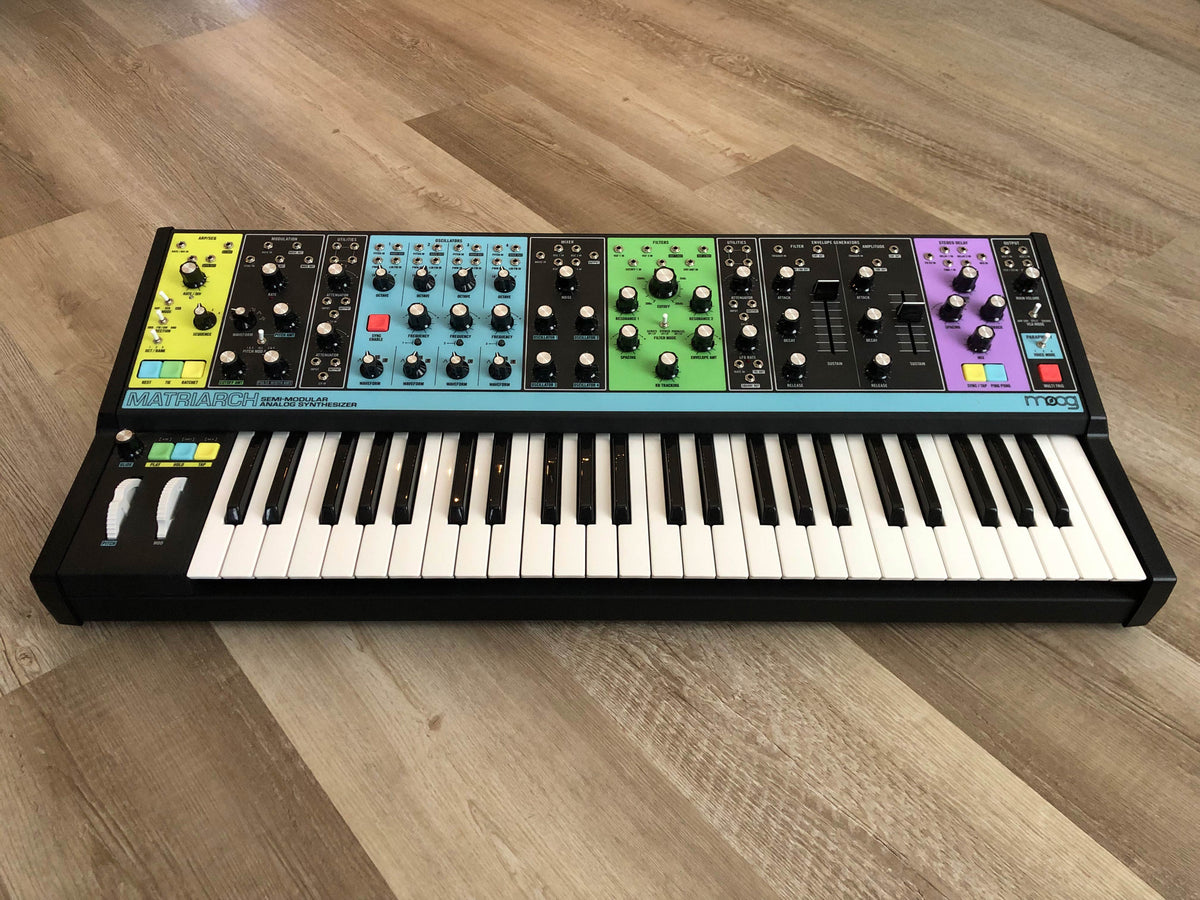

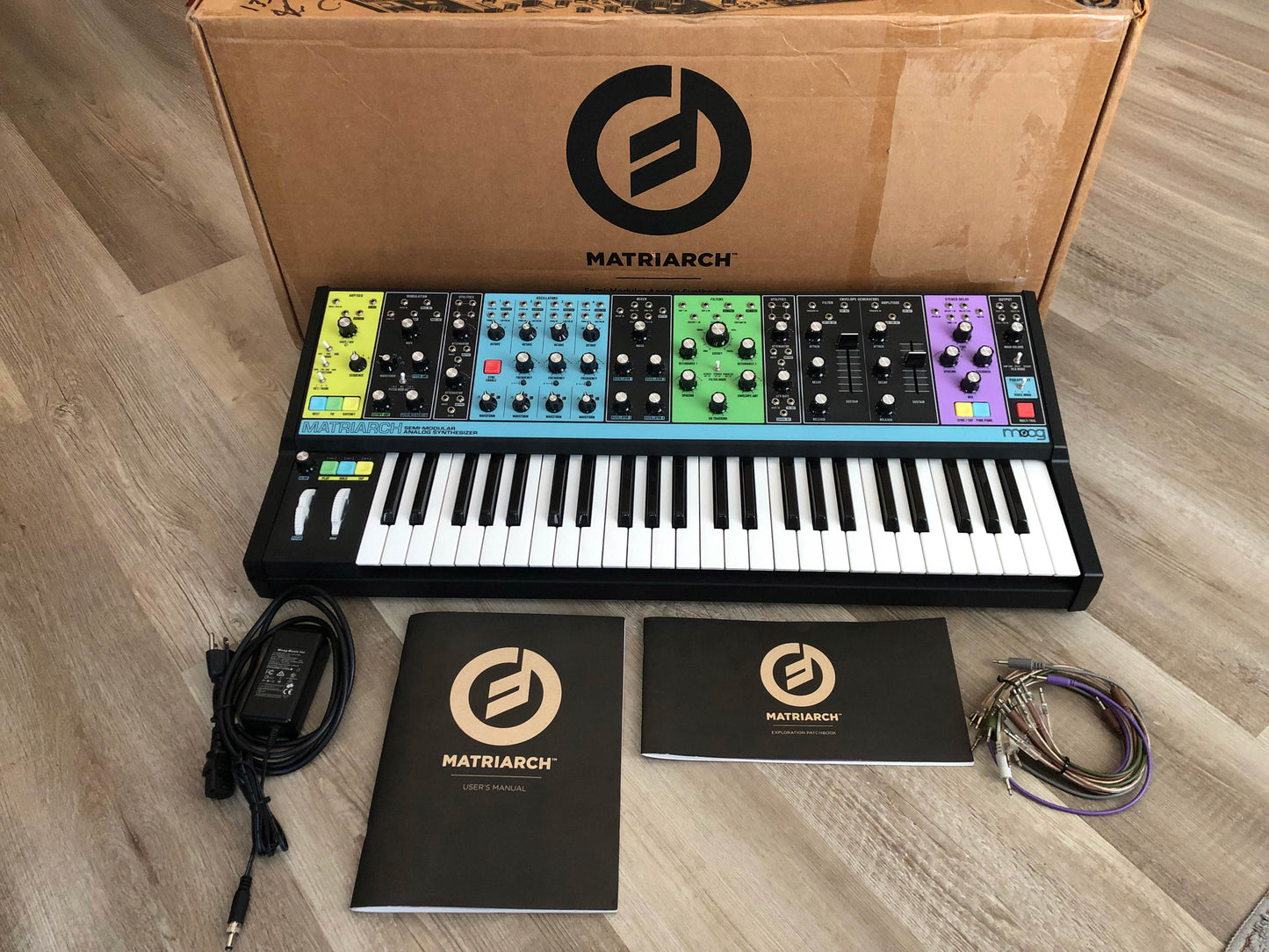

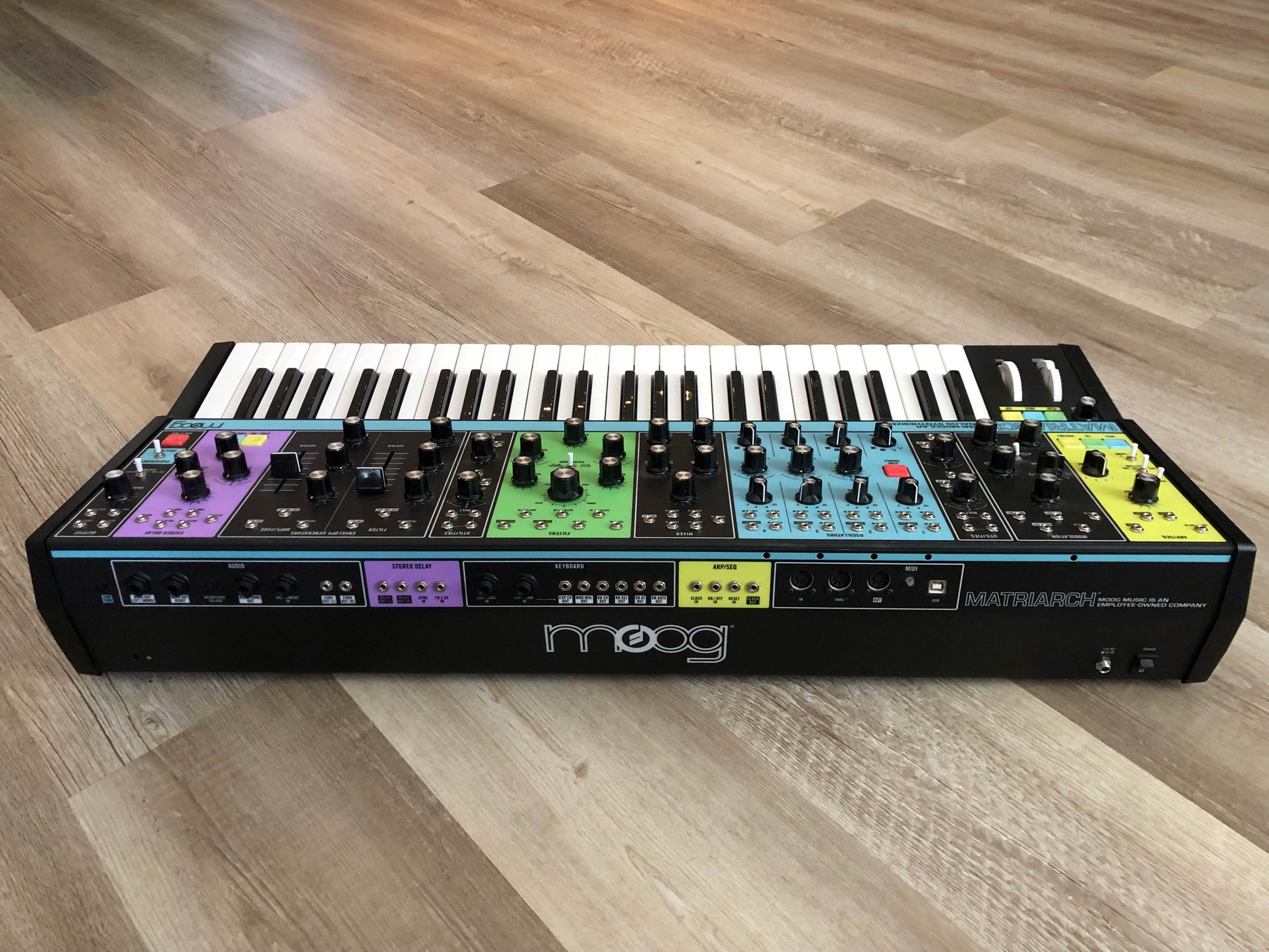

Moog Matriarch Semi-Modular Analog Synthesizer w/ OG Box & PSU, 15 Patch Cables + Manual & Recipe Book

We strive for accuracy, but errors can occur. Please verify details or contact us with questions.

• Synthesis Type: Semi-modular analog synthesizer with a 100% analog signal path and a normalled architecture that is ready to play without patching
• Voice Architecture: Mono, 2-note, and 4-note paraphonic modes
  • Stack all four oscillators for massive monophonic sounds
  • Distribute the oscillator voices across two-note or four-note paraphonic playing
• Oscillators and Sound Sources:
  • 4 analog voltage-controlled oscillators with selectable waveshapes
  • Hard sync available on Oscillators 2, 3, and 4
  • White noise generator and external audio input expand the available sound sources
  • Independent frequency ranges and oscillator controls support layered, detuned, synced, and harmonically related patches

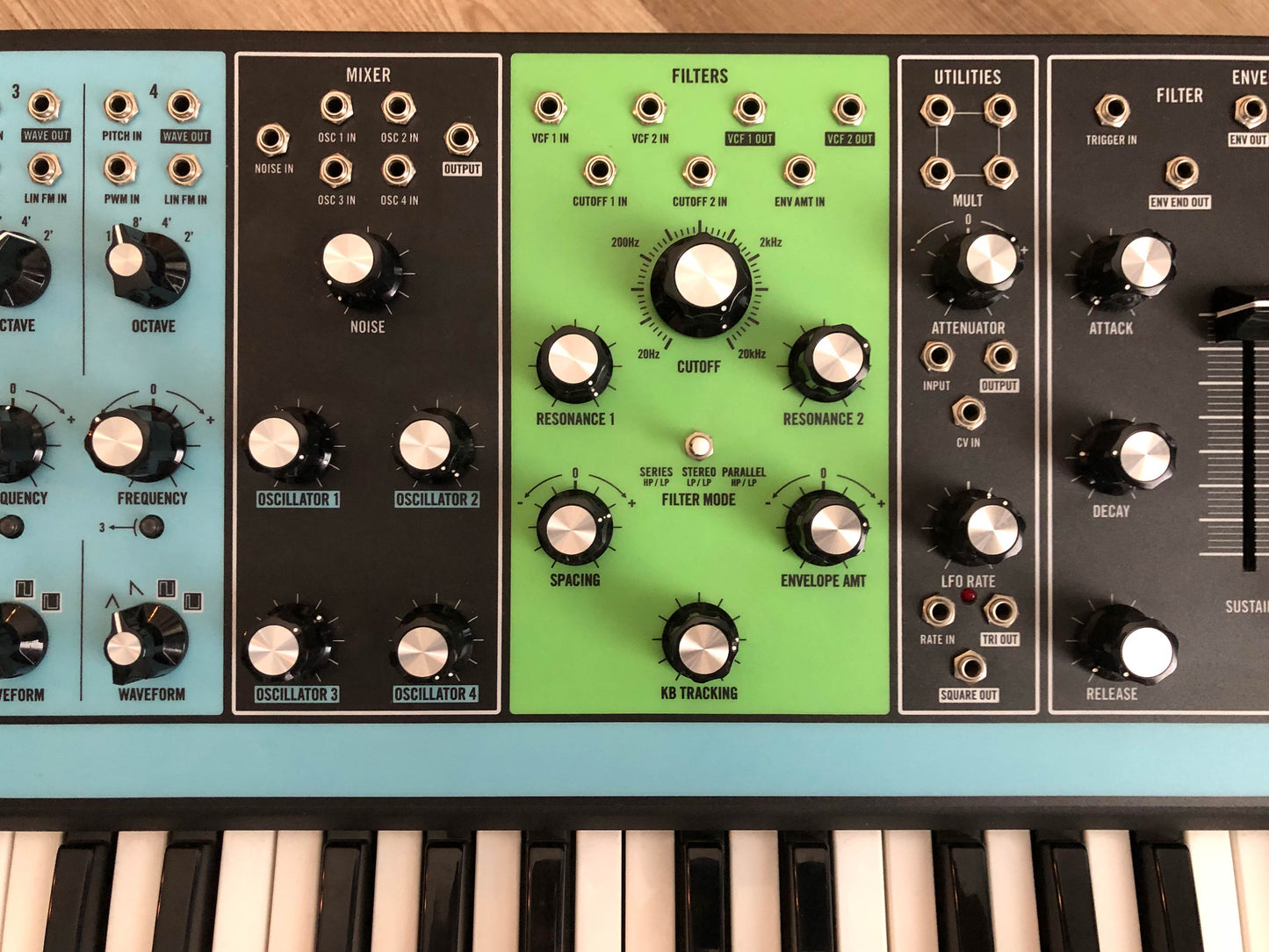

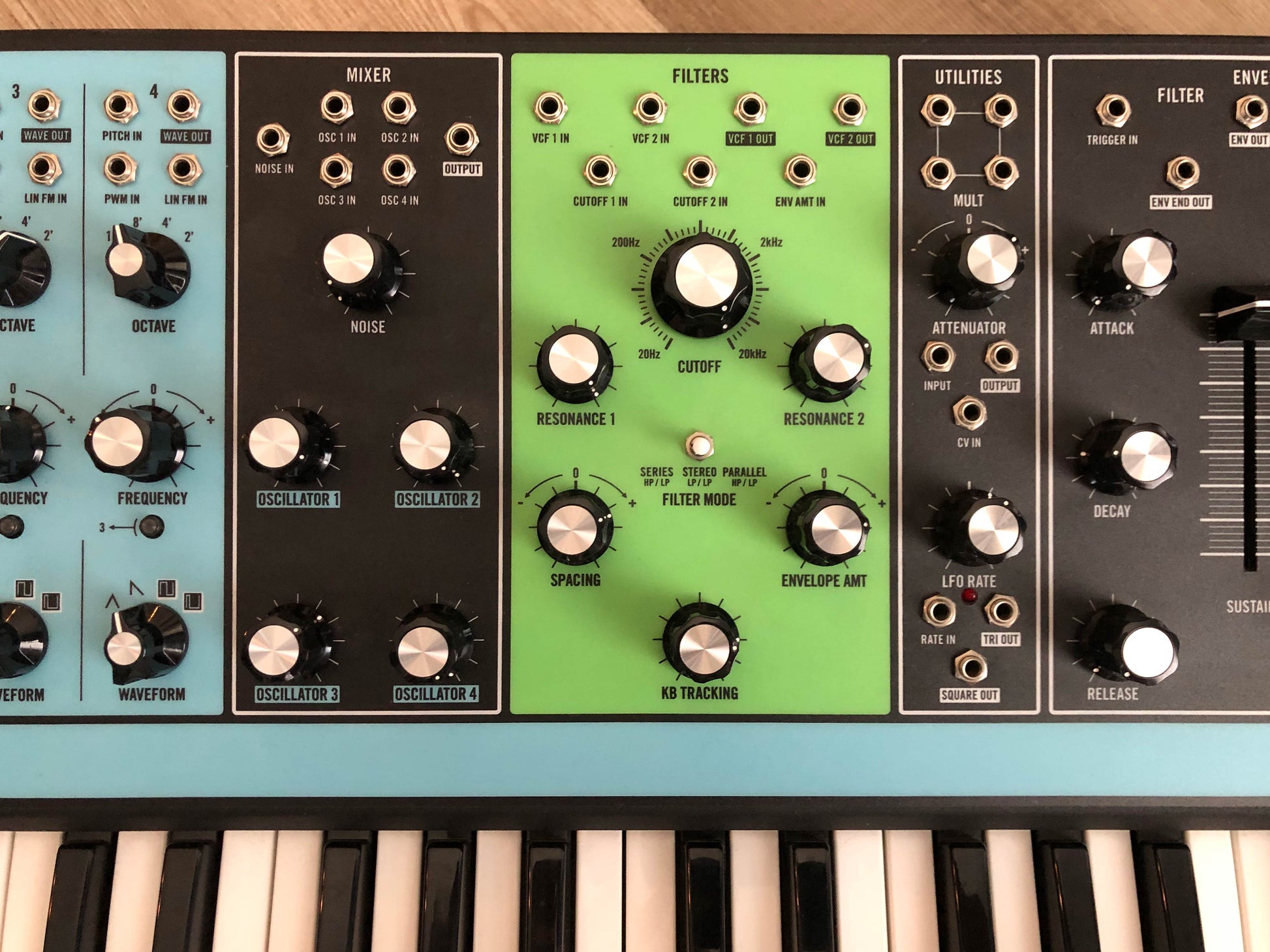

• Filters: Dual analog Moog ladder filters with flexible mono and stereo routing
  • High-pass / low-pass parallel mode
  • Low-pass / low-pass stereo mode
  • High-pass / low-pass series mode
  • Patchable cutoff and spacing controls support animated stereo filtering and more complex modular routing

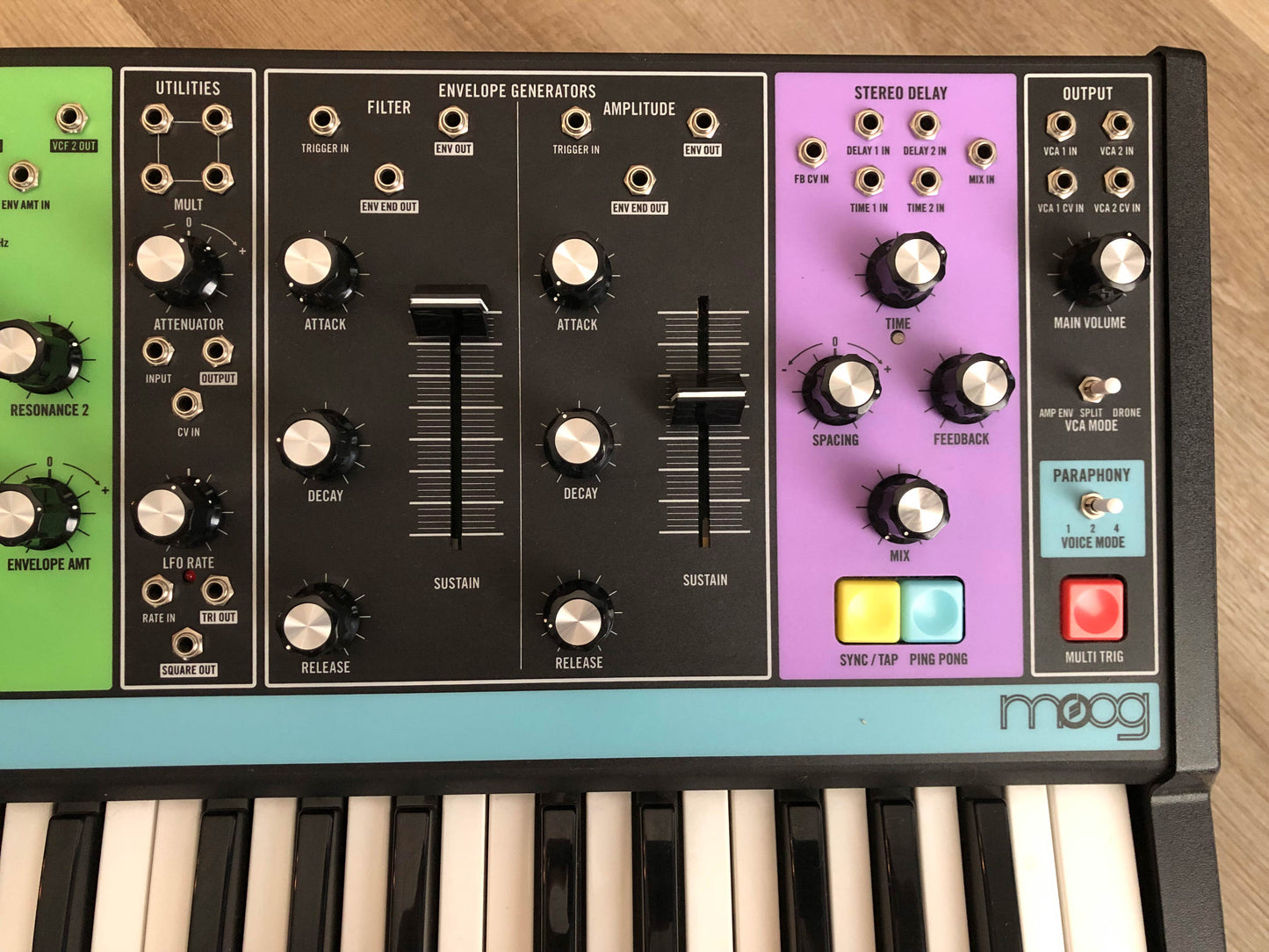

• Envelopes and Amplifiers:
  • Dual ADSR envelope generators for independent filter and amplitude shaping
  • Stereo analog VCAs preserve movement through the stereo signal path
  • Patch points allow the envelopes and VCAs to be redirected beyond the normalled routing
• Modulation and Utilities:
  • Main analog modulation oscillator with six selectable waveshapes, plus an additional simple analog LFO
  • Noise, three bipolar voltage-controlled attenuators, and passive multiples for creating and distributing control signals
  • Patchable velocity, aftertouch, modulation wheel, and expression control for more expressive performance routing
• Stereo Analog Delay:
  • Dual analog delay lines with up to 700 ms of delay time
  • Stereo and ping-pong repeats with MIDI synchronization
  • Independent controls and patch points support subtle stereo depth, rhythmic echoes, feedback textures, and self-oscillating effects

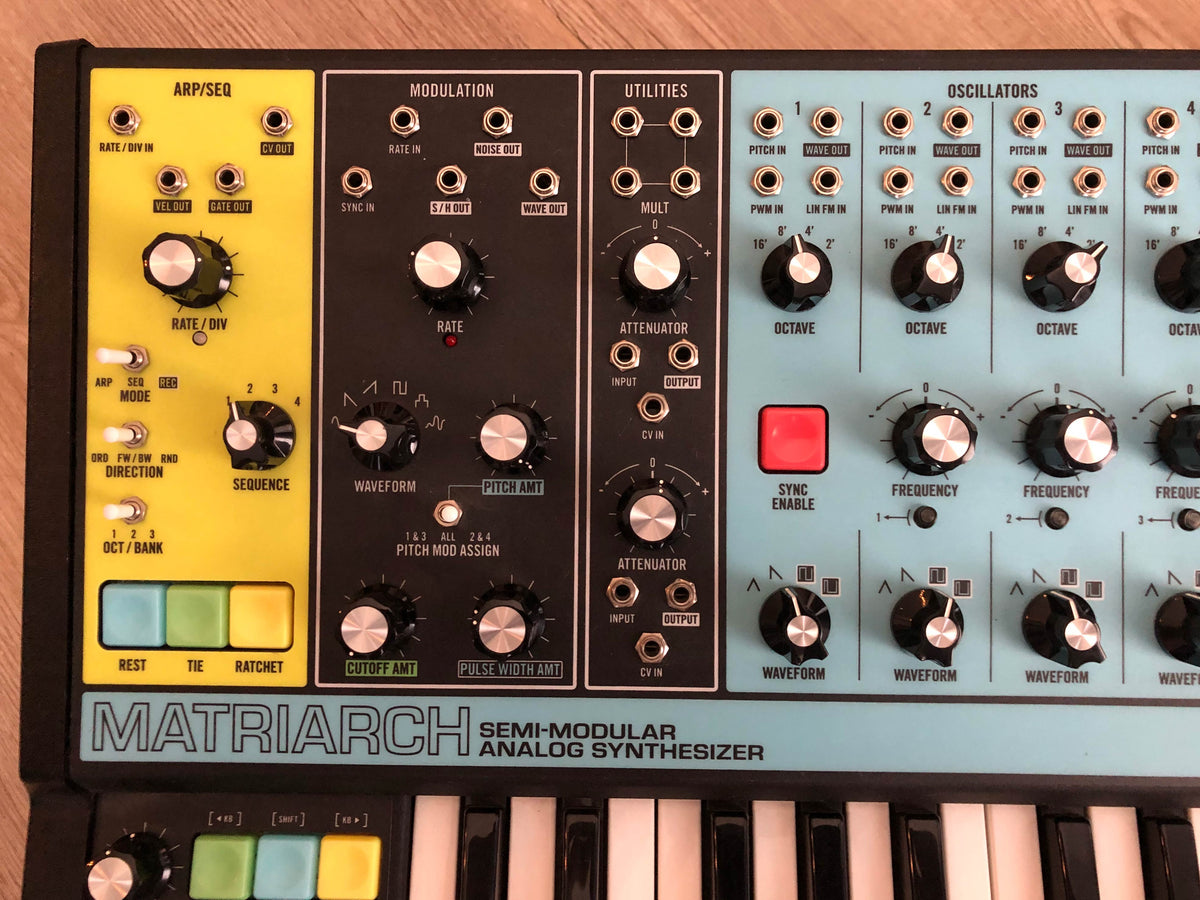

• Sequencer and Arpeggiator:
  • 256-step sequencer with up to 4 notes per step and 12 stored sequences
  • The sequencer can be decoupled from the internal synth engine to control external gear independently
  • Arpeggiator includes Order, Forward / Backward, and Random modes
• Keyboard and Performance Controls:
  • 49 full-size keys with velocity and aftertouch
  • Pitch wheel, modulation wheel, variable glide, sustain pedal input, and expression pedal input
  • Immediate hands-on control for both conventional keyboard playing and modular performance
• Patchbay and Modular Integration:
  • 90 modular patch points for rerouting the internal architecture and integrating external equipment
  • Works as a standalone instrument, a controller for modular gear, or an analog processor for external sound sources
  • Compatible with Moog semi-modular instruments and Eurorack-level workflows
• Connectivity:
  • Stereo 1/4-inch main outputs, headphone output, and 1/4-inch external audio input
  • 3.5 mm Eurorack-level stereo outputs plus extensive CV and gate connections
  • MIDI In, Out, and Thru via 5-pin DIN plus USB MIDI
  • Sustain and expression pedal connections
• Use Cases:
  • Monophonic basses and leads, paraphonic chords, evolving sequences, stereo sound design, and experimental patching
  • External audio processing, modular control, Eurorack integration, live performance, and hands-on studio production
