Elektron Analog Heat MKI Near-Mint w/ OG Box, PSU + New 6ft USB Cable
Elektron Analog Heat MKI Near-Mint w/ OG Box, PSU + New 6ft USB Cable
Couldn't load pickup availability
For sale: Elektron Analog Heat MKI stereo analog distortion processor with Overbridge support in near-mint cosmetic condition and perfect working order. This is a very clean MKI and a great way to add anything from subtle warmth and saturation to aggressive distortion, filtering, and movement to synths, drum machines, vocals, and mixes.
Details below:

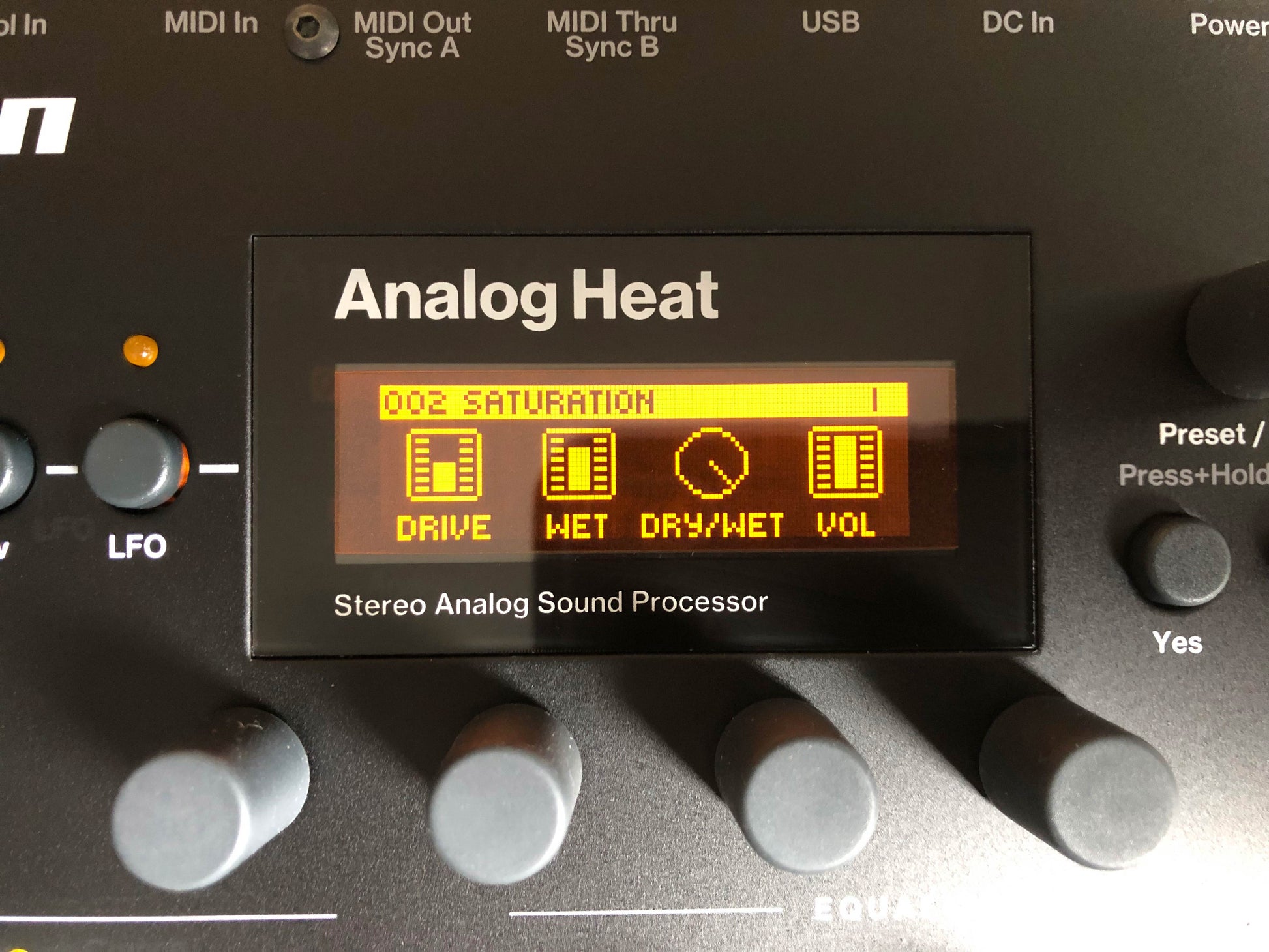

We disassembled the unit to remove dust from inside the display and fully clean the faceplate.
The original box is included, but one side of the original packing foam is missing. We will supplement the remaining factory packing with bubble wrap and double-box the unit for safe delivery (see photo 12).

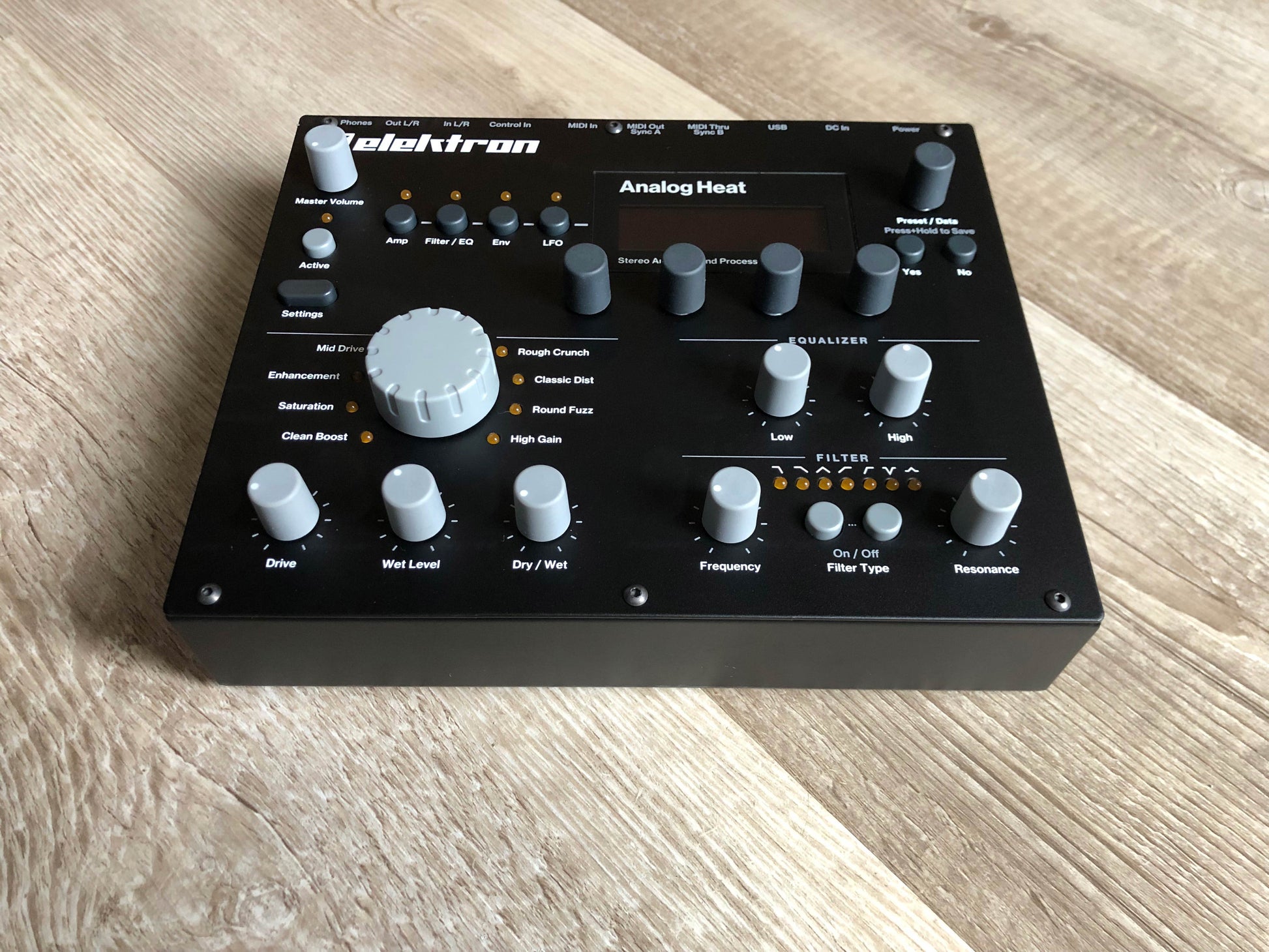

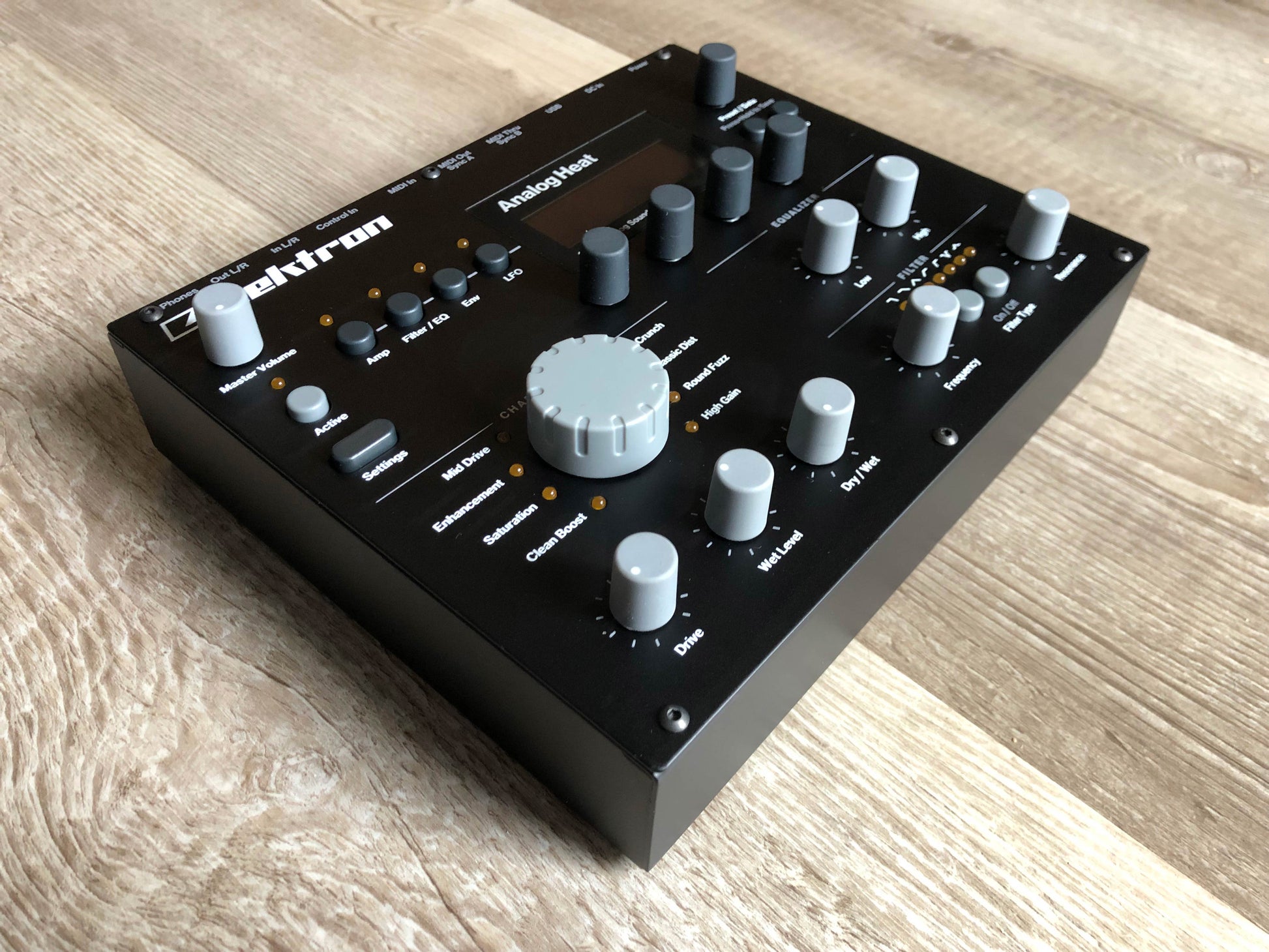

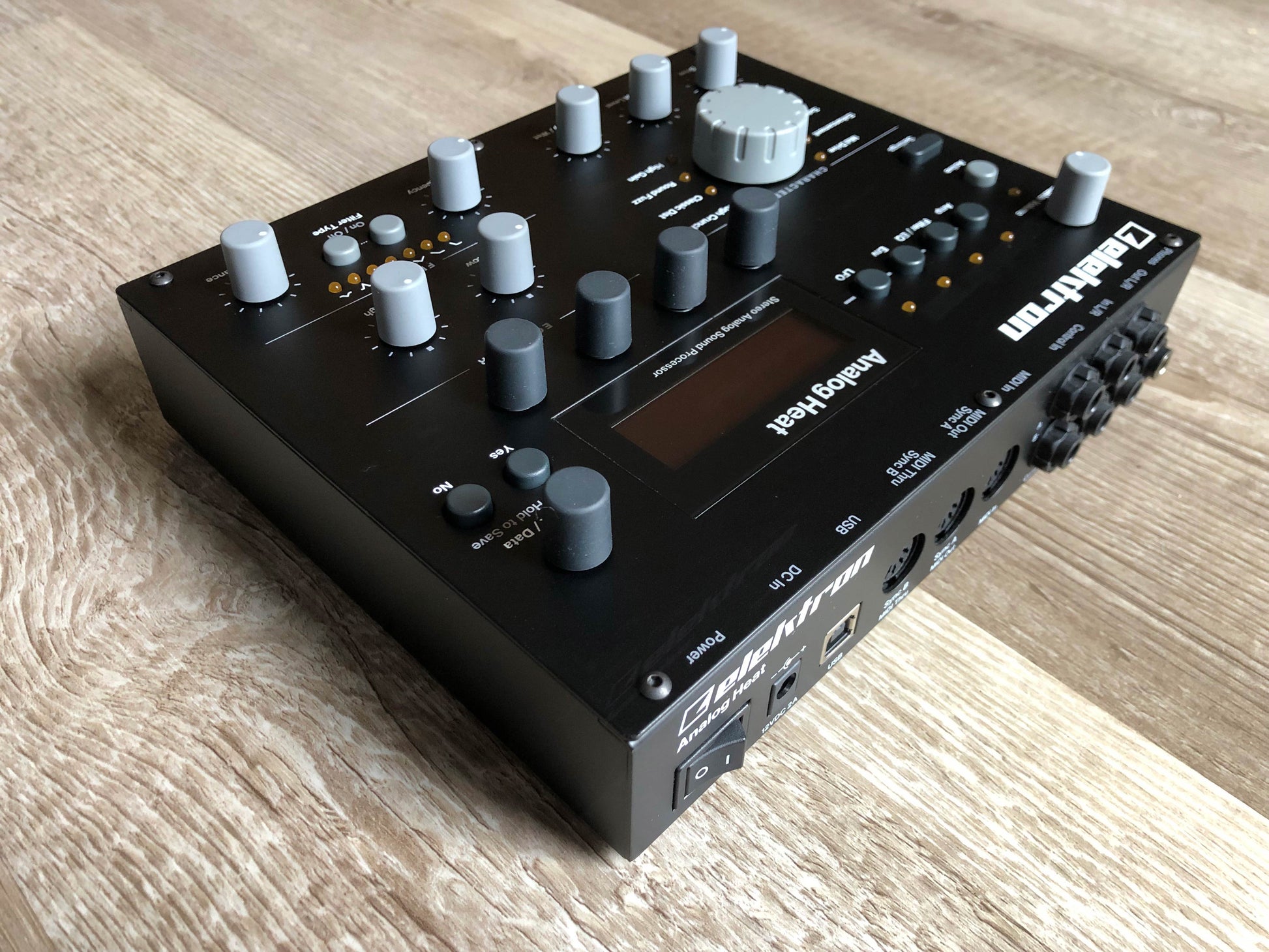

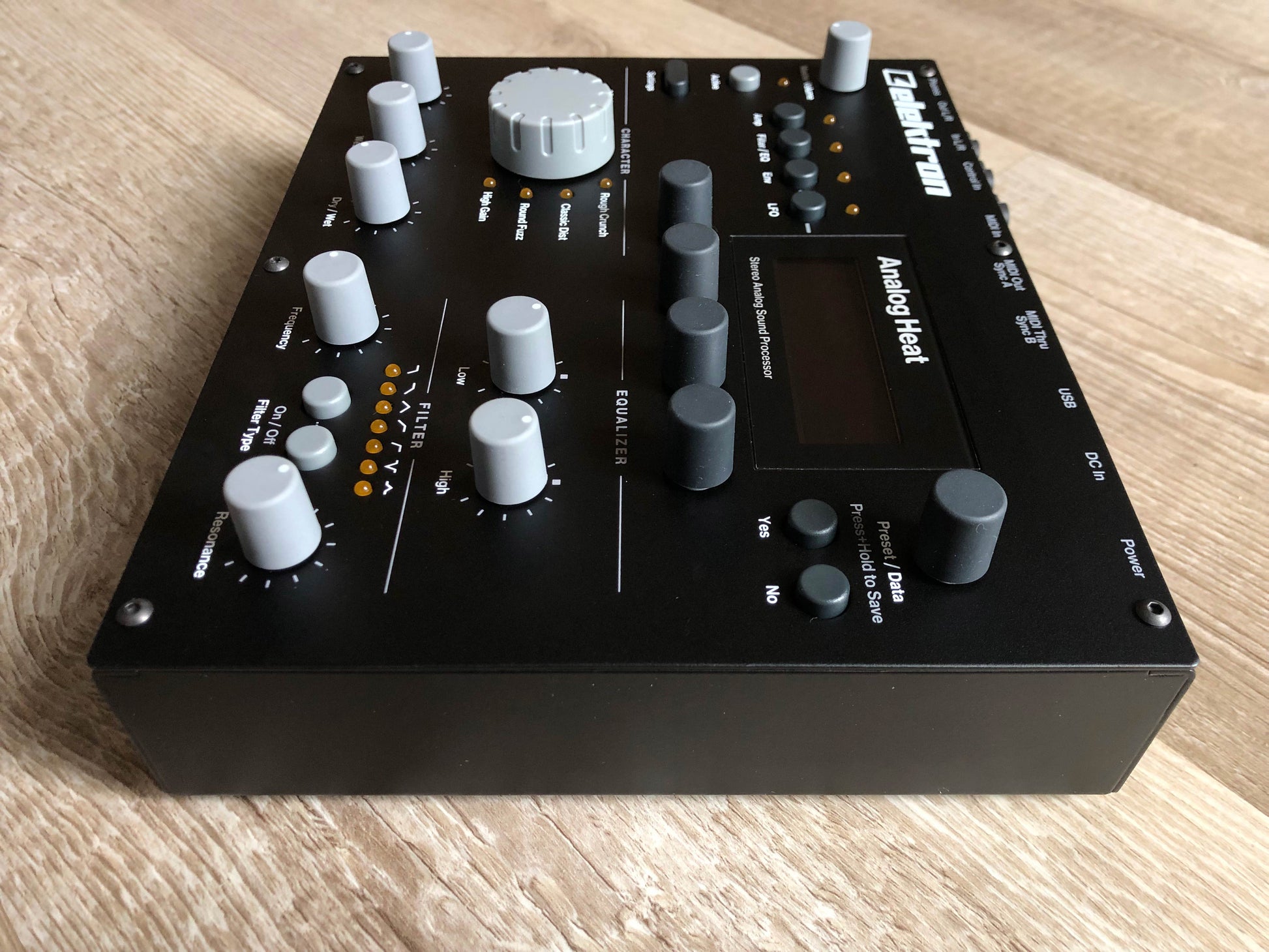

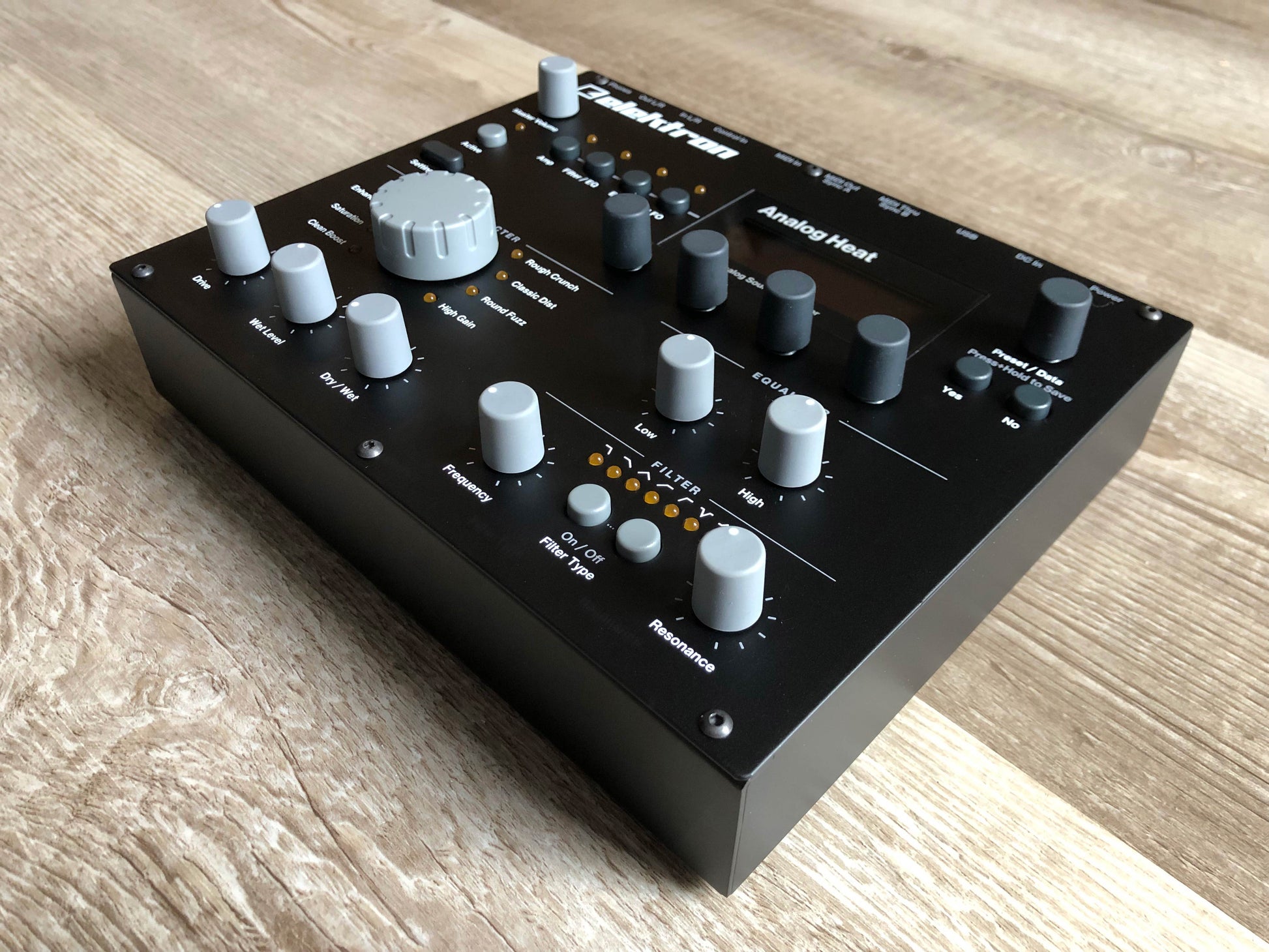

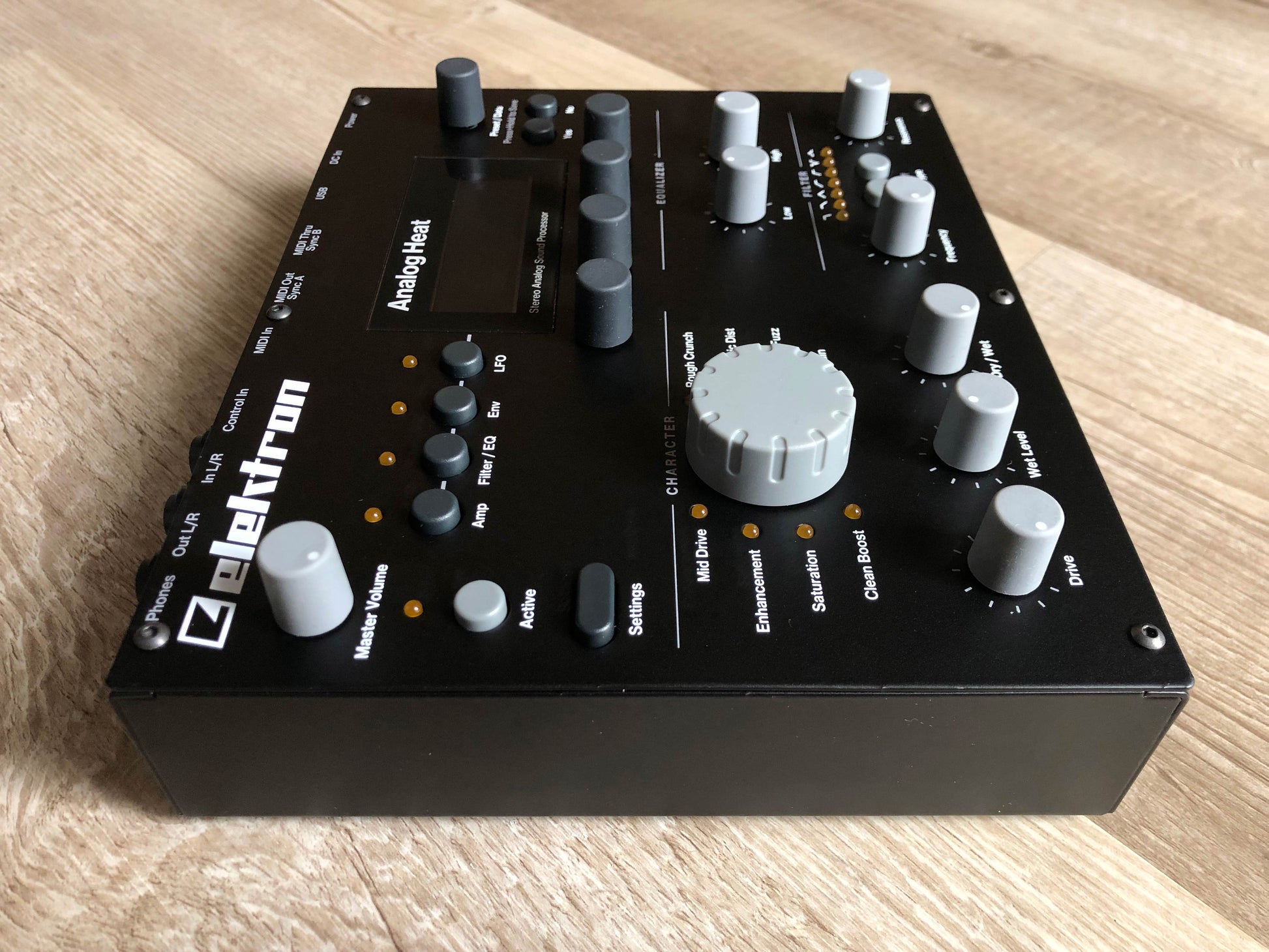

This unit is in excellent, near-mint cosmetic condition. Please examine all photos carefully, as we have done our best to document the condition.

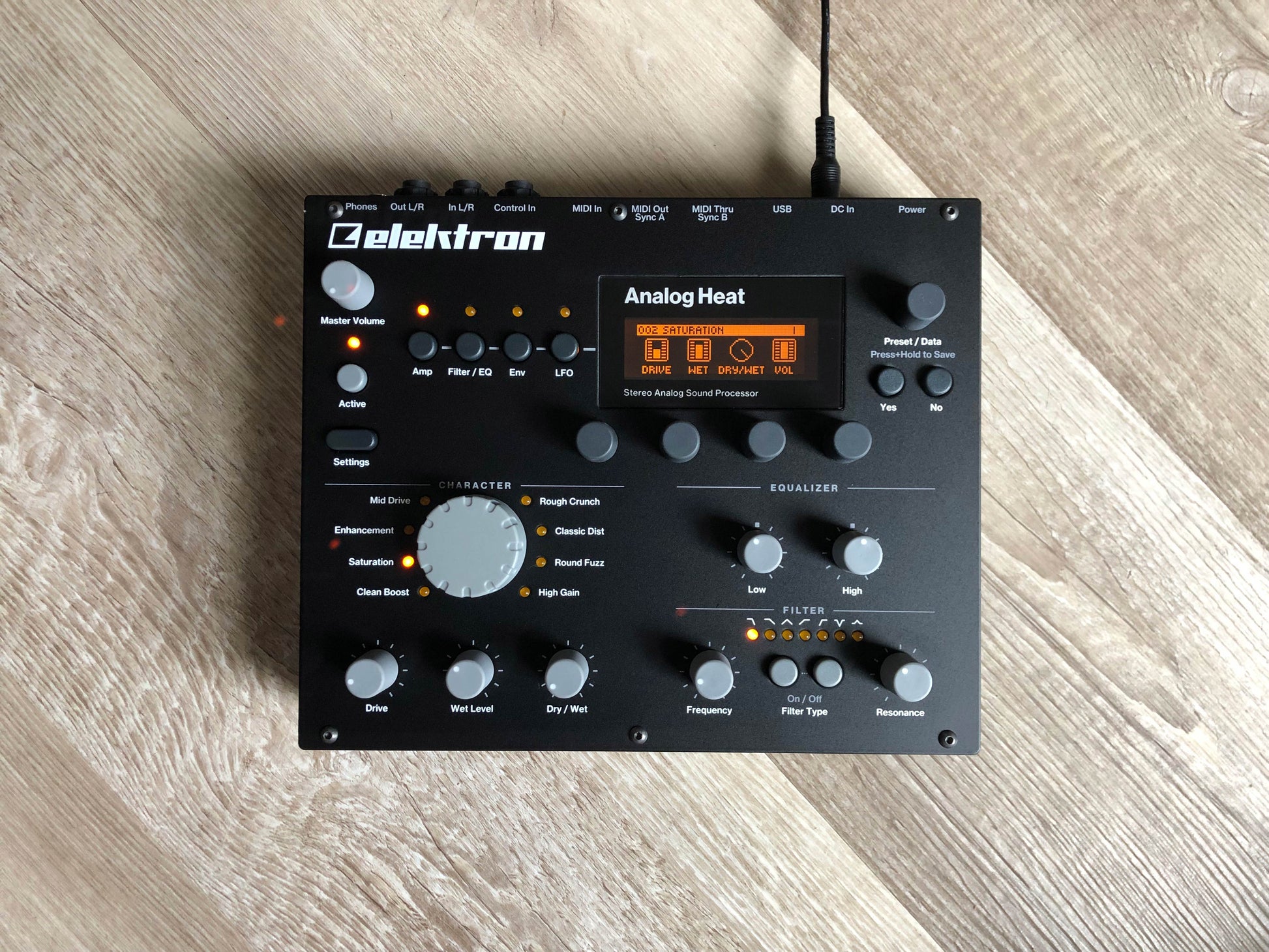

The Elektron Analog Heat MKI is a stereo analog sound processor built around eight distinct analog distortion circuits, a multimode stereo analog filter, and a flexible analog EQ section. It can provide subtle warmth and glue, heavy saturation, or more extreme sound design, while the envelope follower and LFO add responsive movement to filter and distortion parameters. With Overbridge support, the Analog Heat MKI can integrate with compatible DAWs for audio streaming, automation, control, and total recall over USB.

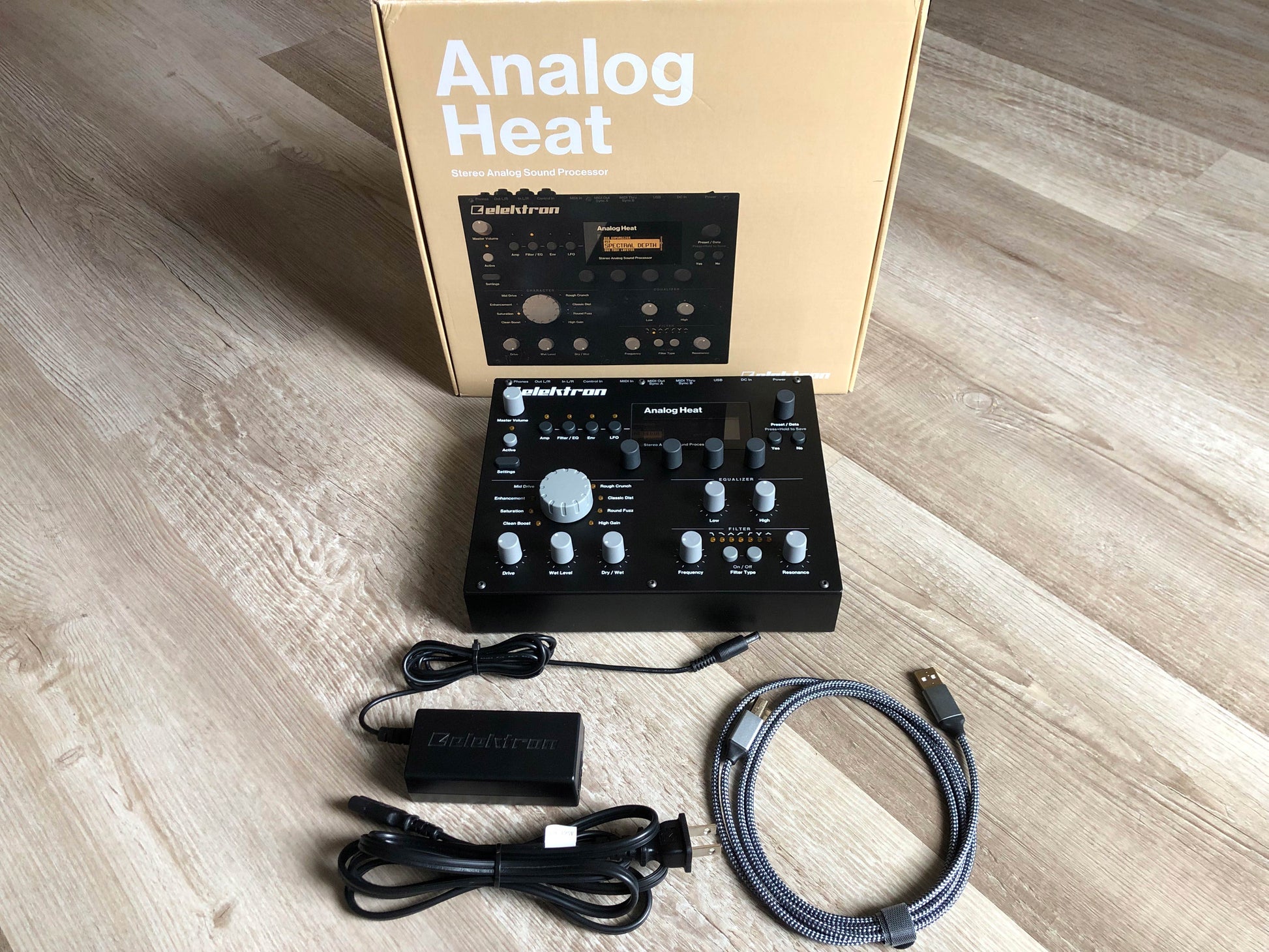

Sale includes the Elektron Analog Heat MKI, original Elektron power supply, new 6-ft USB cable, original box with the remaining factory packing, and free shipping to the continental US.
- Guaranteed as described or your money-back.
- 15-day return window. See return details.
- Questions? Email or chat with us anytime.
No sales tax collected on orders outside Texas. A signature is required for delivery. We ship via UPS, FedEx, and USPS. Email us before or after checkout if you have a preference.
We accept 15-day standard returns. We take great care to ensure your items arrive as described. See our Refund Policy and Shipping Policy for more details.
View our verified reviews on Google, eBay, and Reverb.
If you make a purchase, please opt in to the Google Reviews survey on the thank you or order status page to help the shop grow. Thanks for supporting our small business :)
Share this item
We strive for accuracy, but errors can occur. Please verify details or contact us with questions.
- Type: Stereo analog effects processor and 2-in/2-out USB audio interface
- Manufacturer Model / MPN: HFX1, also styled HFX-1
- Analog Distortion Circuits: Eight stereo analog circuits
- Clean Boost, Saturation, Enhancement, Mid Drive, Rough Crunch, Classic Dist, Round Fuzz, and High Gain
- Filter: Stereo analog multimode filter with seven types
- Low Pass 2, Low Pass 1, Band Pass, High Pass 1, High Pass 2, Band Stop, and Peak
- EQ: Adaptable two-band stereo analog EQ with circuit-specific characteristics
- Modulation:
- Assignable envelope follower and envelope generator
- Assignable LFO with multiple waveforms and sync options
- Modulation routing for dynamic control of filter and processing parameters
- Signal Control: Drive, wet level, dry/wet mix, preset volume, master volume, input sensitivity, and active/bypass control
- Preset Memory: 128 preset slots
- Display: 128 x 64 pixel LCD

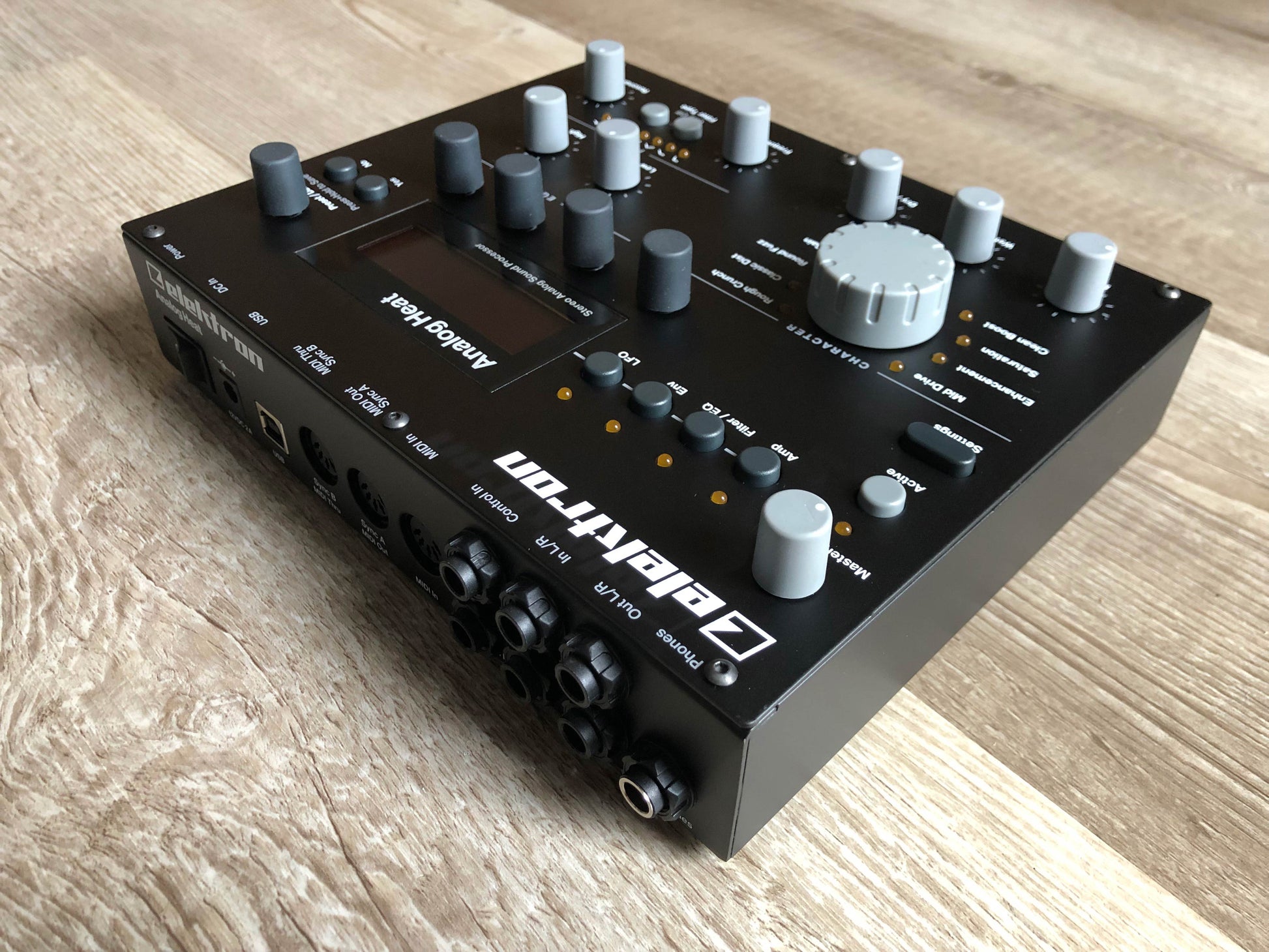

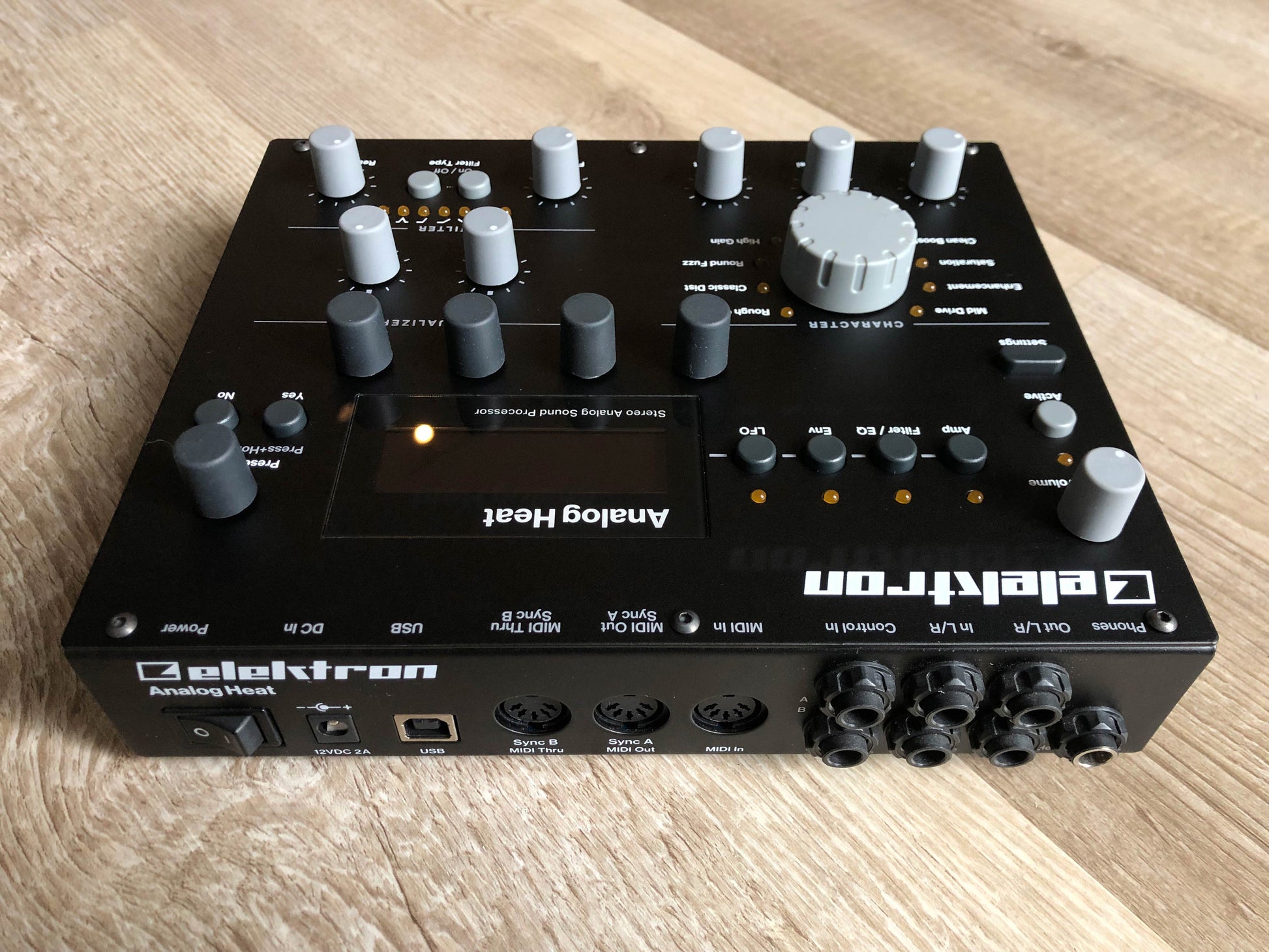

- Audio I/O:
- 2 x 1/4" balanced audio inputs
- 2 x 1/4" balanced audio outputs
- 1 x 1/4" stereo headphone output
- 2 x 1/4" control inputs for expression pedal, footswitch, or CV
- MIDI: MIDI In, Out, and Thru via 5-pin DIN, with configurable DIN Sync output
- USB / Overbridge: Hi-Speed USB 2.0 for MIDI, audio streaming, DAW control, automation, and recall with compatible software. The unit can also function as a 2-in/2-out computer sound card.
- Converters: 48 kHz, 24-bit A/D and D/A
- Power: 12 VDC, minimum 2 A. Designed for the Elektron PSU-3b.
- Construction: Steel enclosure
- Dimensions: 215 x 184 x 63 mm, including audio outputs, knobs, and feet
- Weight: Approximately 1.5 kg / 3.3 lbs

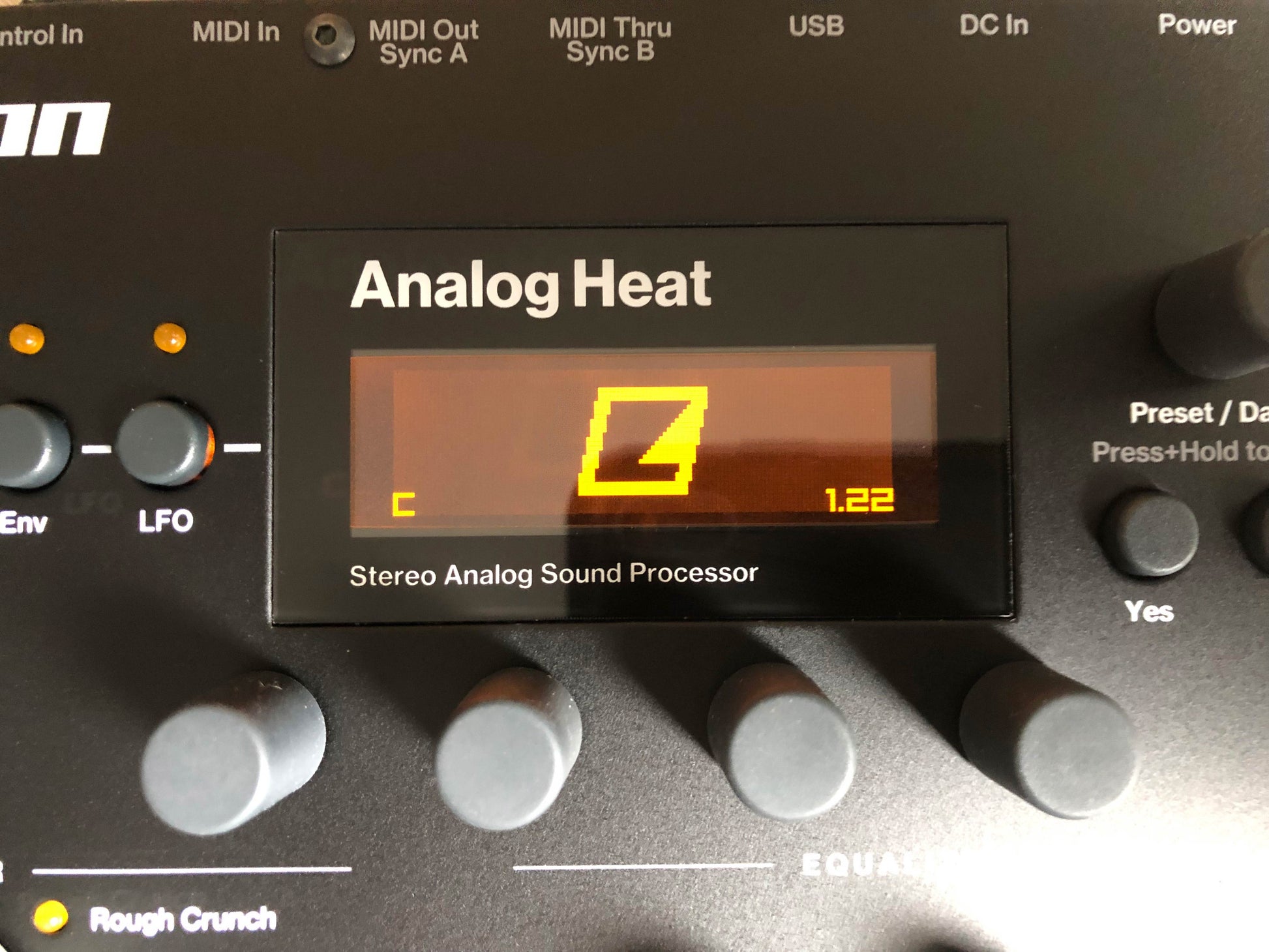

- Latest Available OS: Version 1.22
- Use Cases: Mix bus saturation, drum and synth processing, parallel distortion, filtering, re-amping, sound design, and Overbridge DAW integration

-
