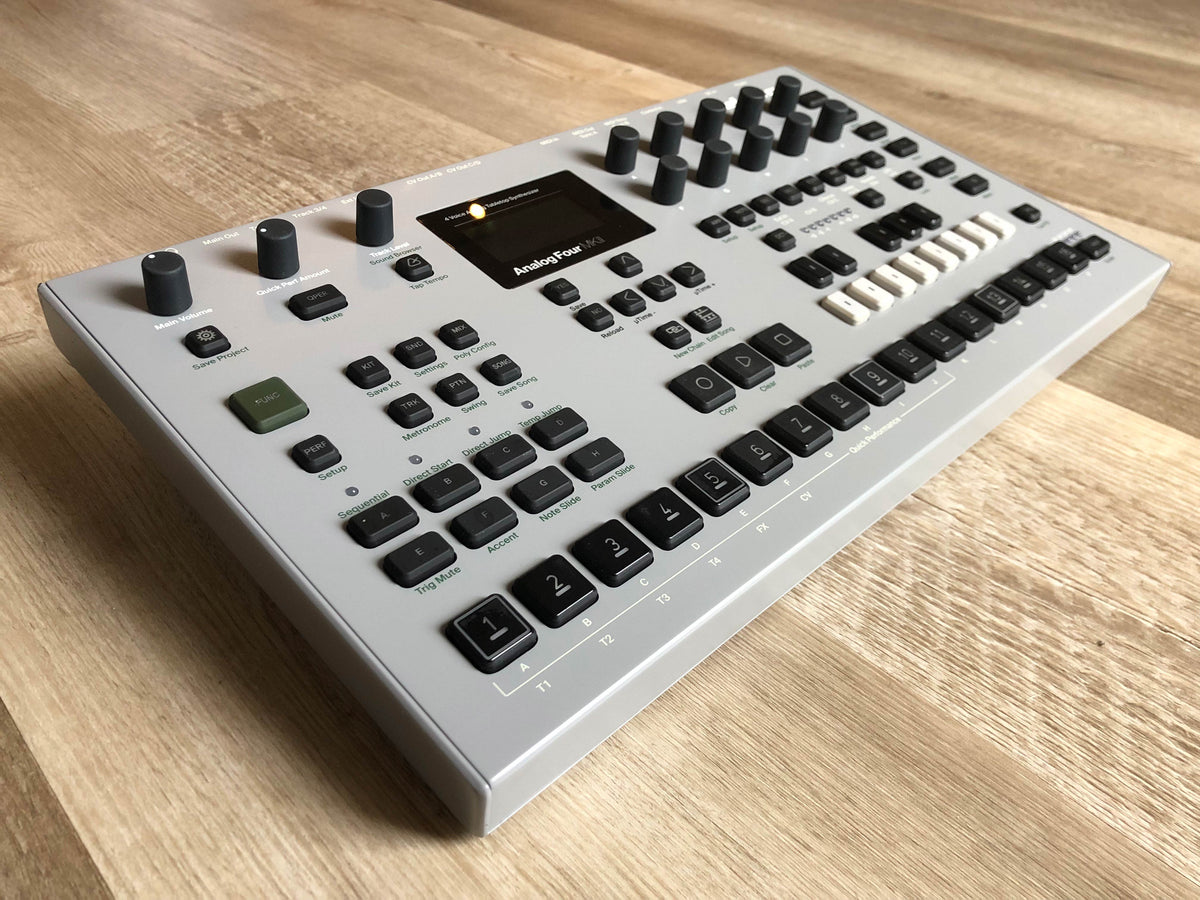

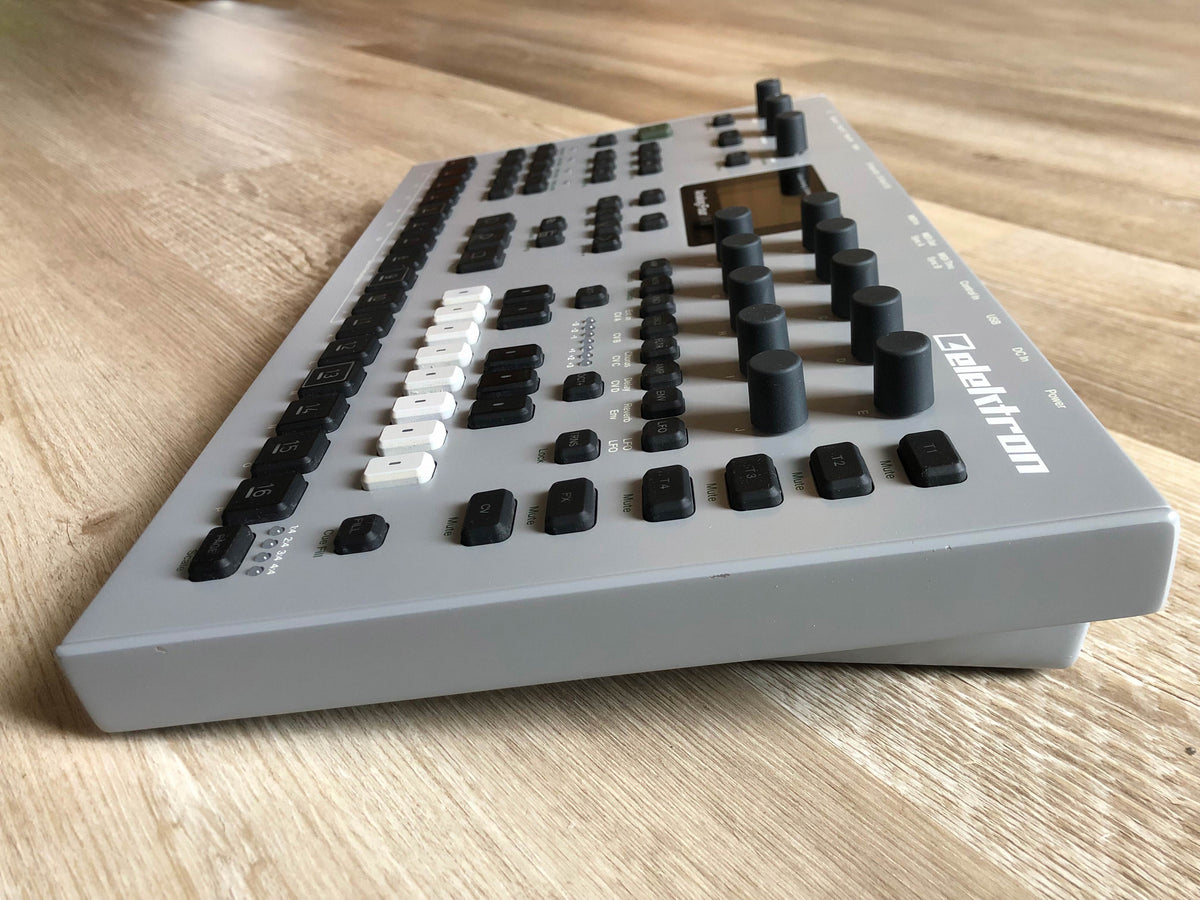

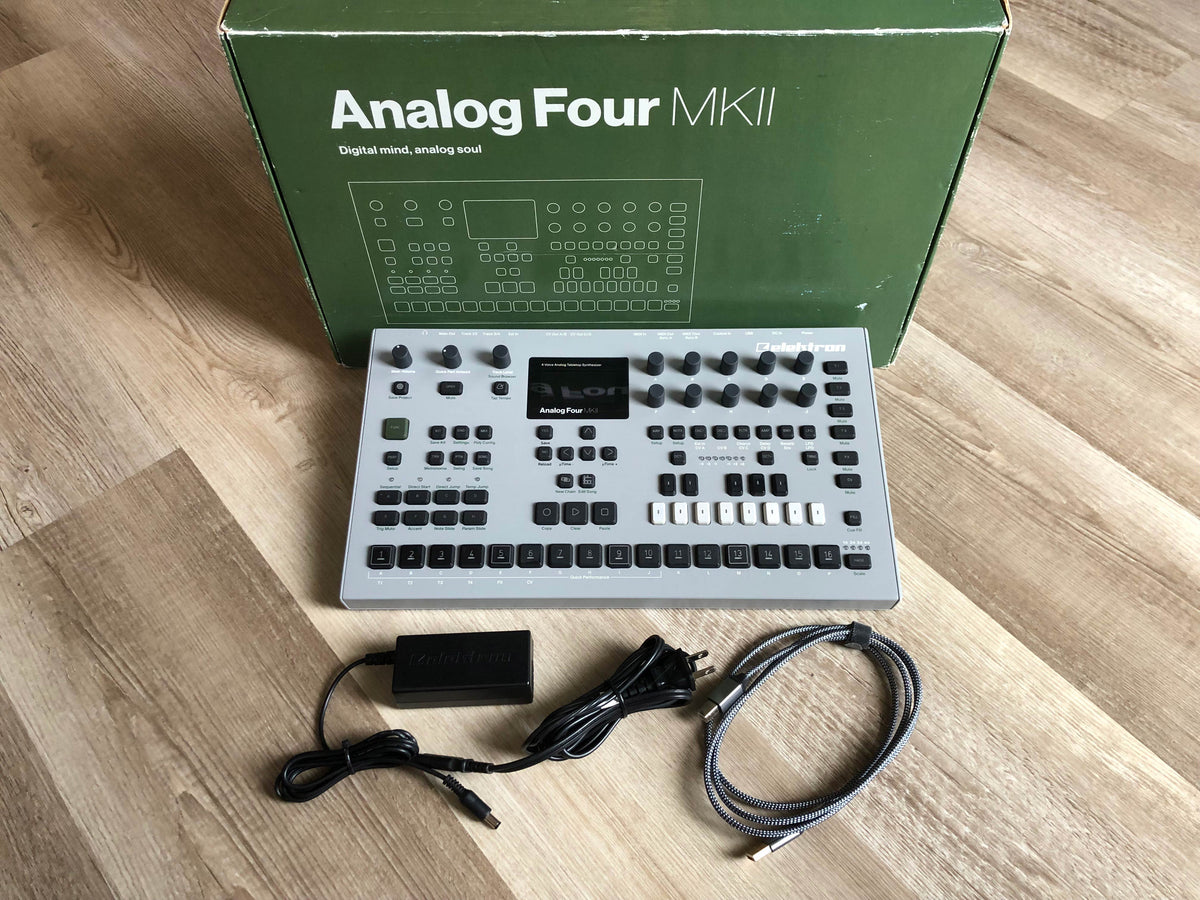

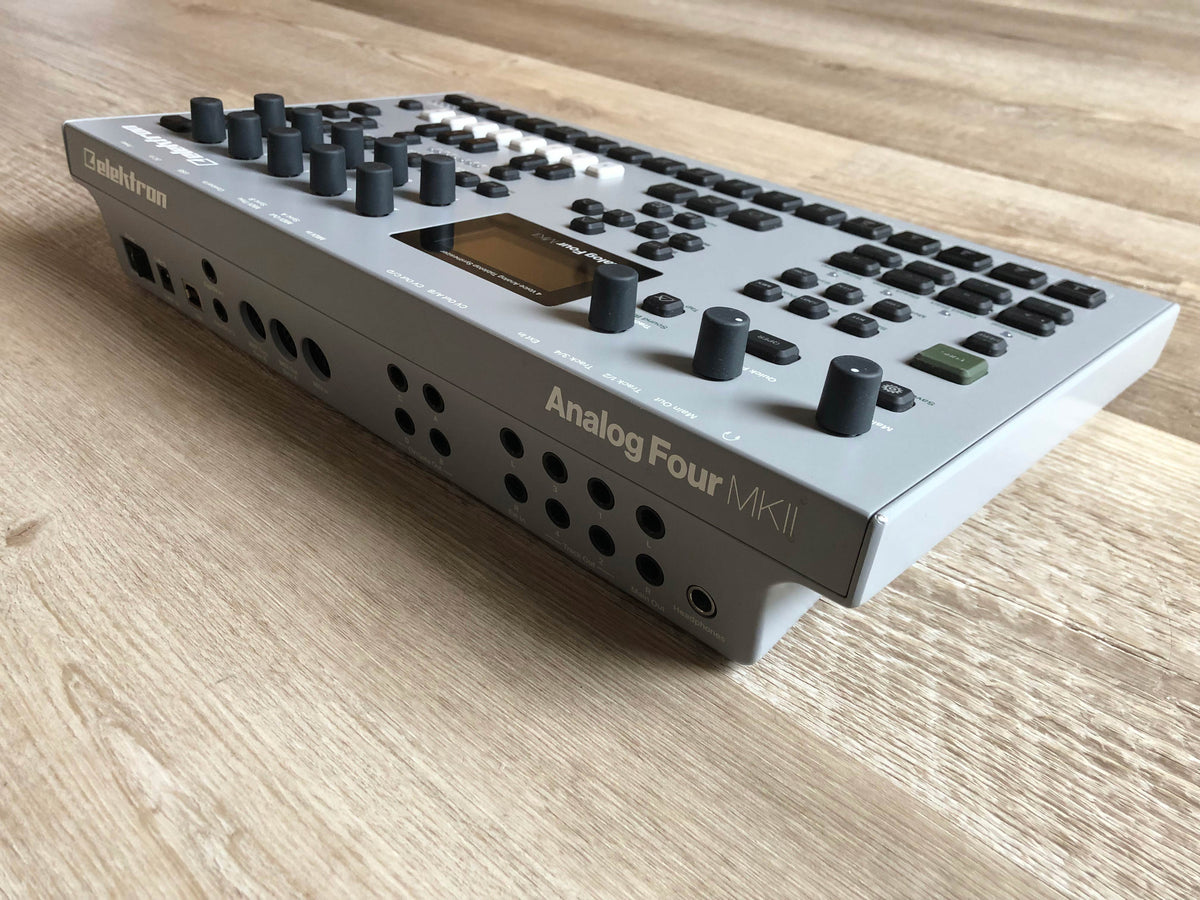

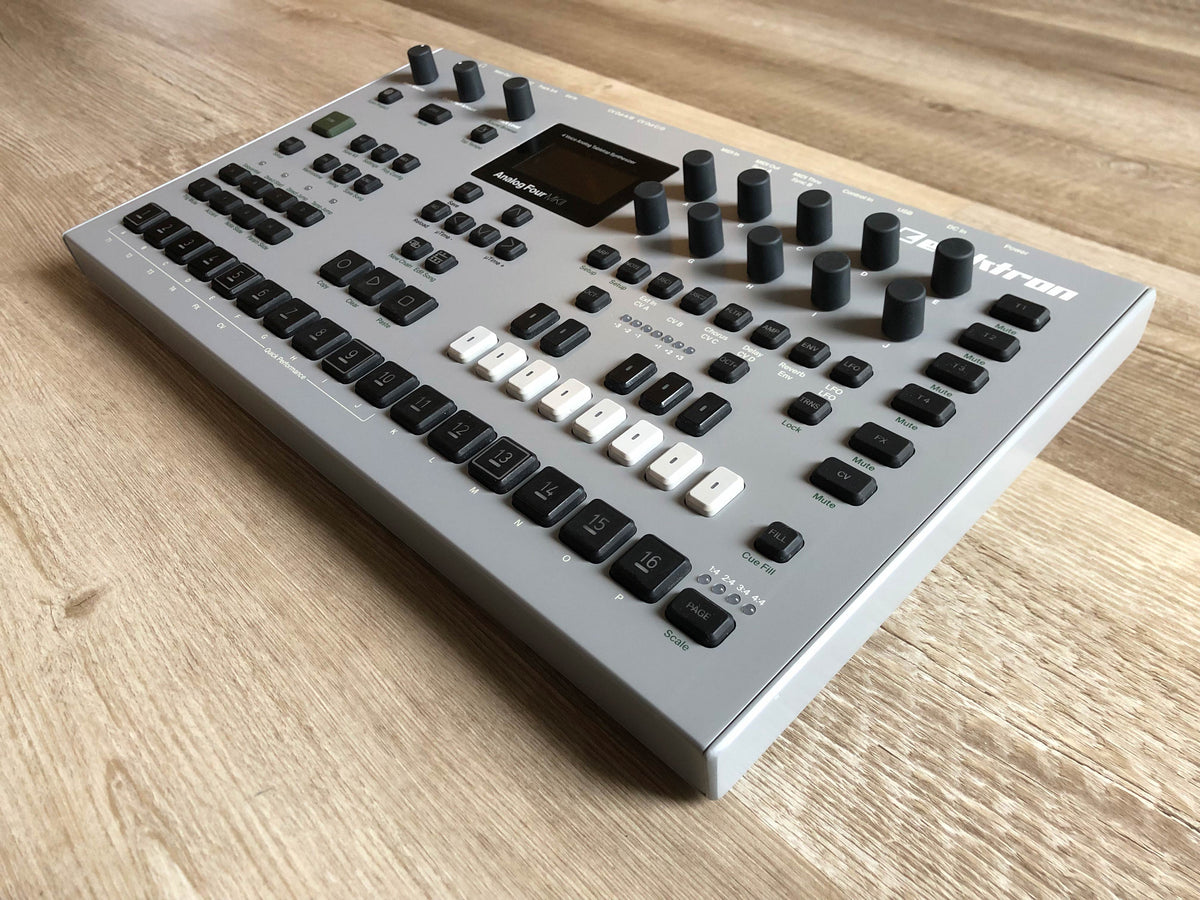

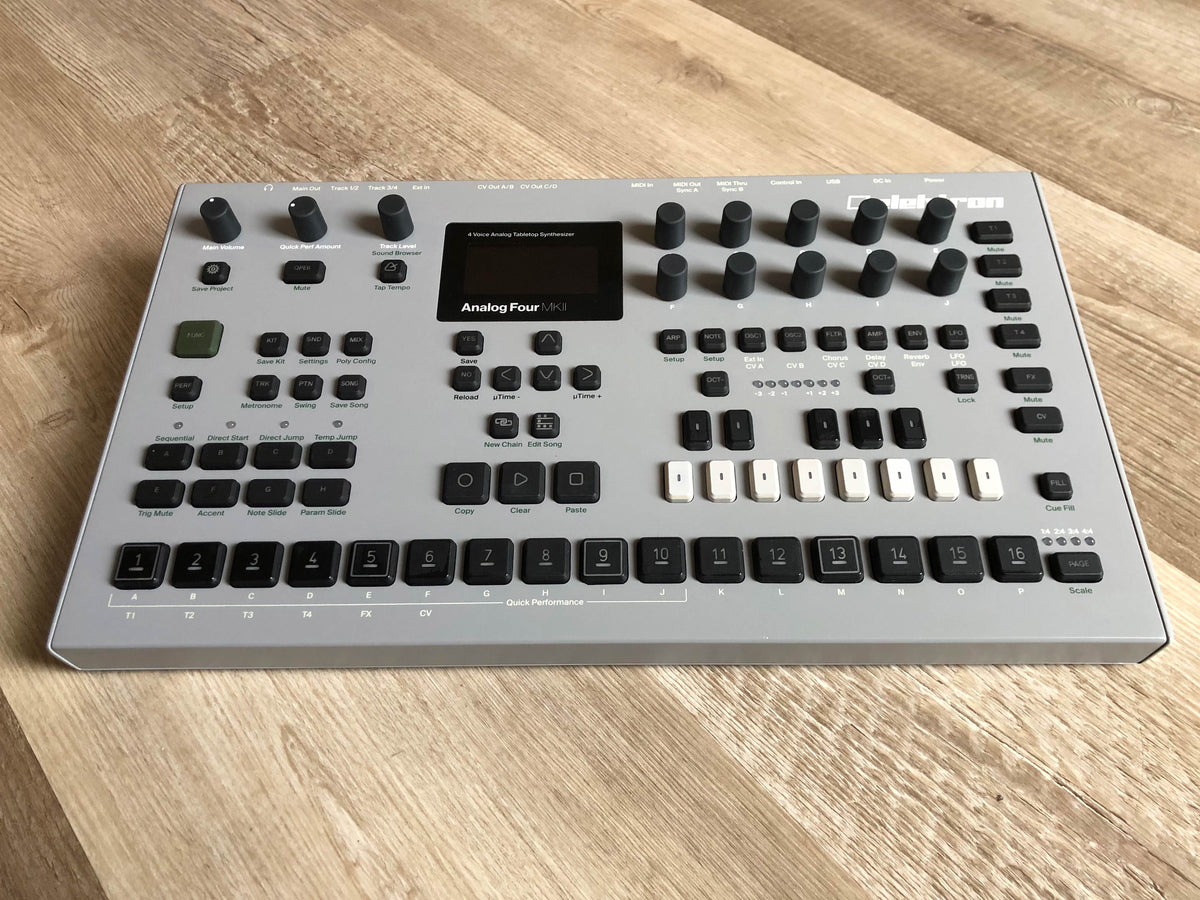

Elektron Analog Four MKII (Gray) w/ Original Box, PSU + New USB Cable

We strive for accuracy, but errors can occur. Please verify details or contact us with questions.

• Synthesis & Polyphony: Four analog voices with digital control, up to four-note polyphony, four-part multitimbrality, and configurable unison. Voices can be allocated across the four synth tracks for separate parts or polyphonic playing.
• Oscillators & Sound Sources: Each voice has two analog oscillators, two sub-oscillators, and a noise generator. Variable waveshapes, oscillator sync, and amplitude modulation provide a broad range of tonal options.
• Filters & Overdrive: Each voice includes a four-pole analog low-pass ladder filter, a two-pole analog multimode filter, analog overdrive, and filter feedback. The MKII's revised circuitry provides deeper bass and a more pronounced overdrive character.
• Modulation: Two assignable LFOs, dedicated vibrato and waveshape modulation, an amplitude envelope, and two assignable envelopes per voice, with additional dedicated fade and pitch modulation controls.
• Sequencer:
  • Four synth tracks, one FX track, and one CV/Gate track, with patterns up to 64 steps long.
  • Parameter locks, sound changes per step, conditional trigs, micro timing, swing, accents, and slides.
  • Individual track lengths, arpeggiators, pattern chains, and Song Mode for building longer arrangements.
• Performance Controls: Assignable performance macros and the dedicated Quick Performance control let one gesture change multiple sound parameters. Pattern, kit, and sound reload functions make it easy to return to saved settings during experimentation.
• Effects: Wideshift Chorus, Saturator Delay, and Supervoid Reverb send effects, with a dedicated FX sequencer track.
• Storage: 128 projects and 4,096 sounds in the +Drive Sound Library. Each project holds 128 patterns, 128 kits, 16 songs, and a 128-sound project pool.

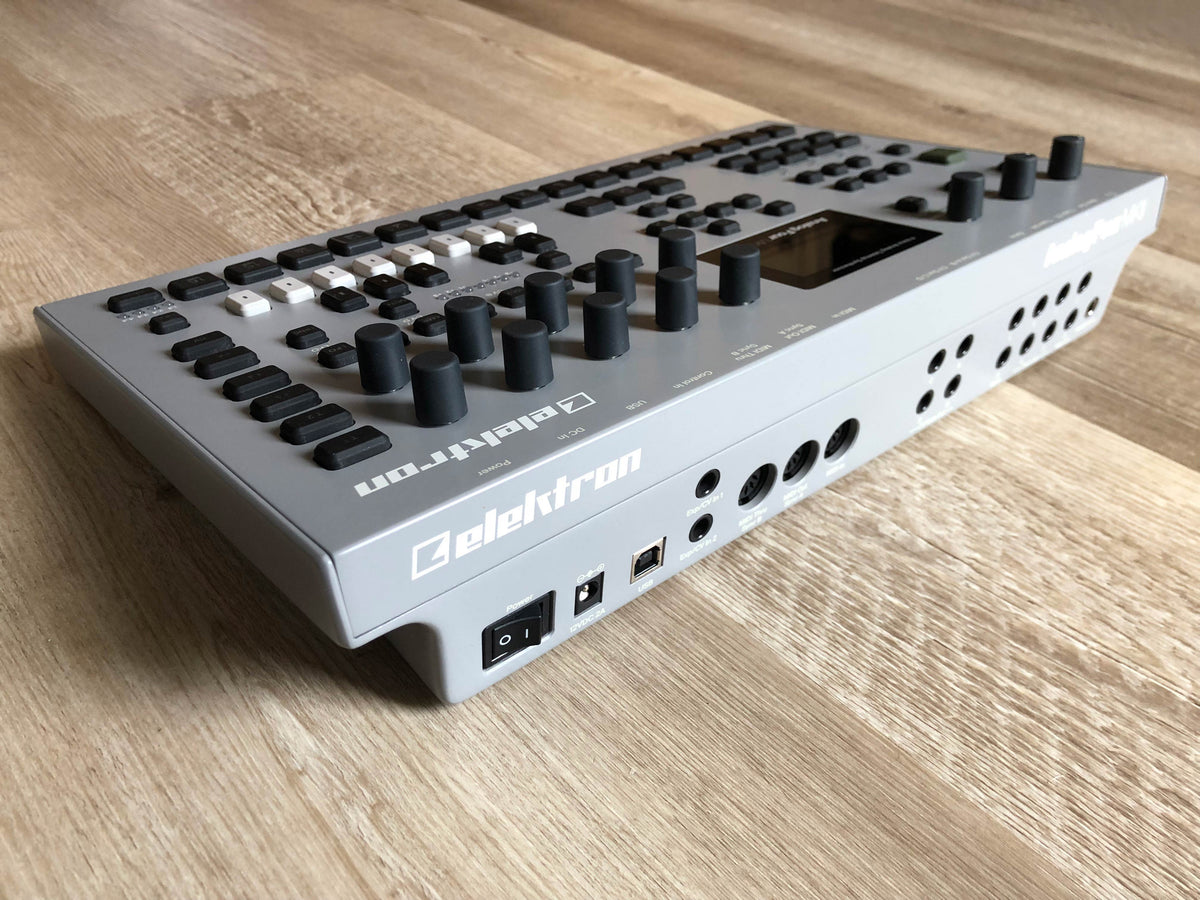

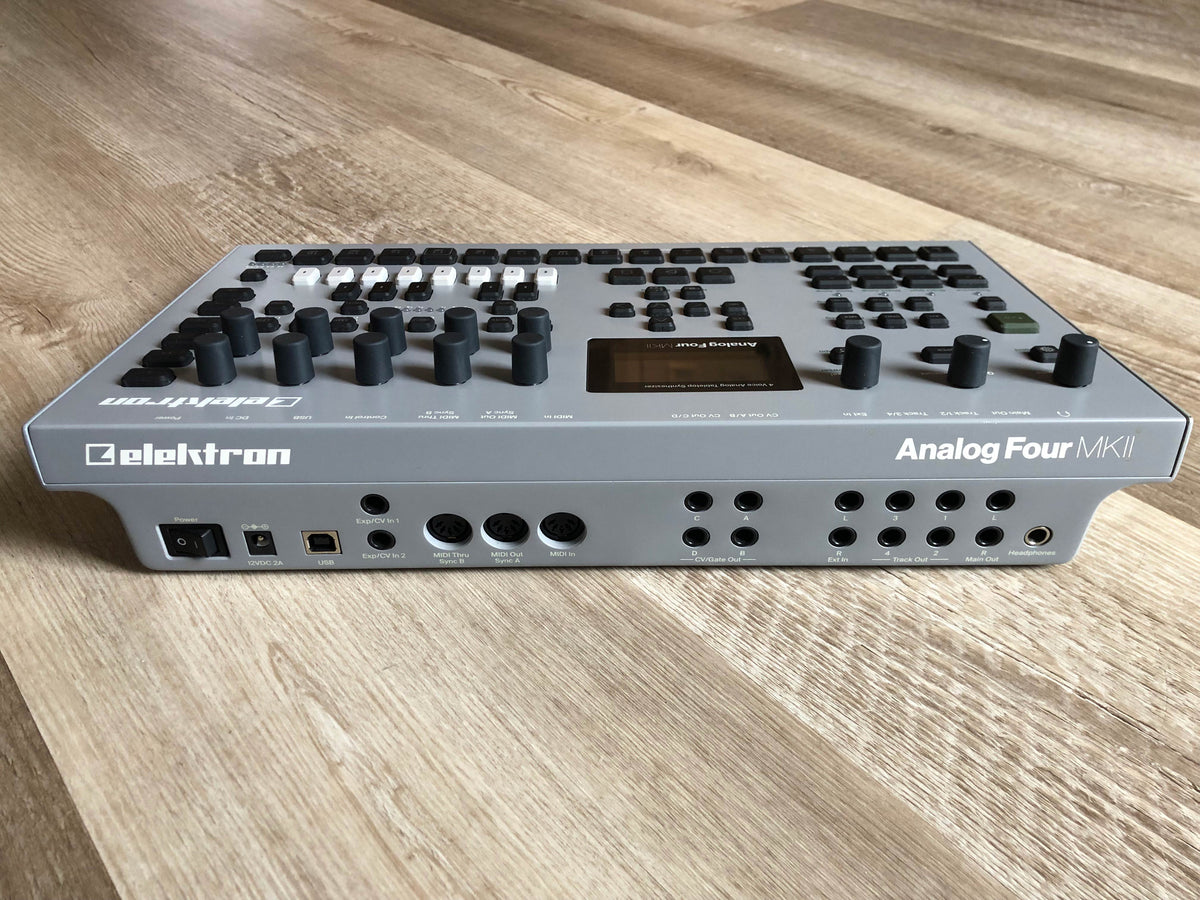

• Audio Connections:
  • Two 1/4-inch impedance-balanced main outputs and four separate 1/4-inch stereo voice outputs.
  • Two 1/4-inch unbalanced external audio inputs and one 1/4-inch stereo headphone output.
• CV & Expression: Four configurable CV/Gate outputs for external analog gear and two CV/expression inputs for external control. CV output range is -10 V to +10 V.
• MIDI & USB: MIDI In, Out, and Thru with DIN Sync output, plus an electrically isolated USB 2.0 port. Overbridge supports DAW integration, audio streaming, and software control. USB audio/MIDI mode is also available with compatible firmware.
• Conversion: 48 kHz, 24-bit A/D and D/A converters.

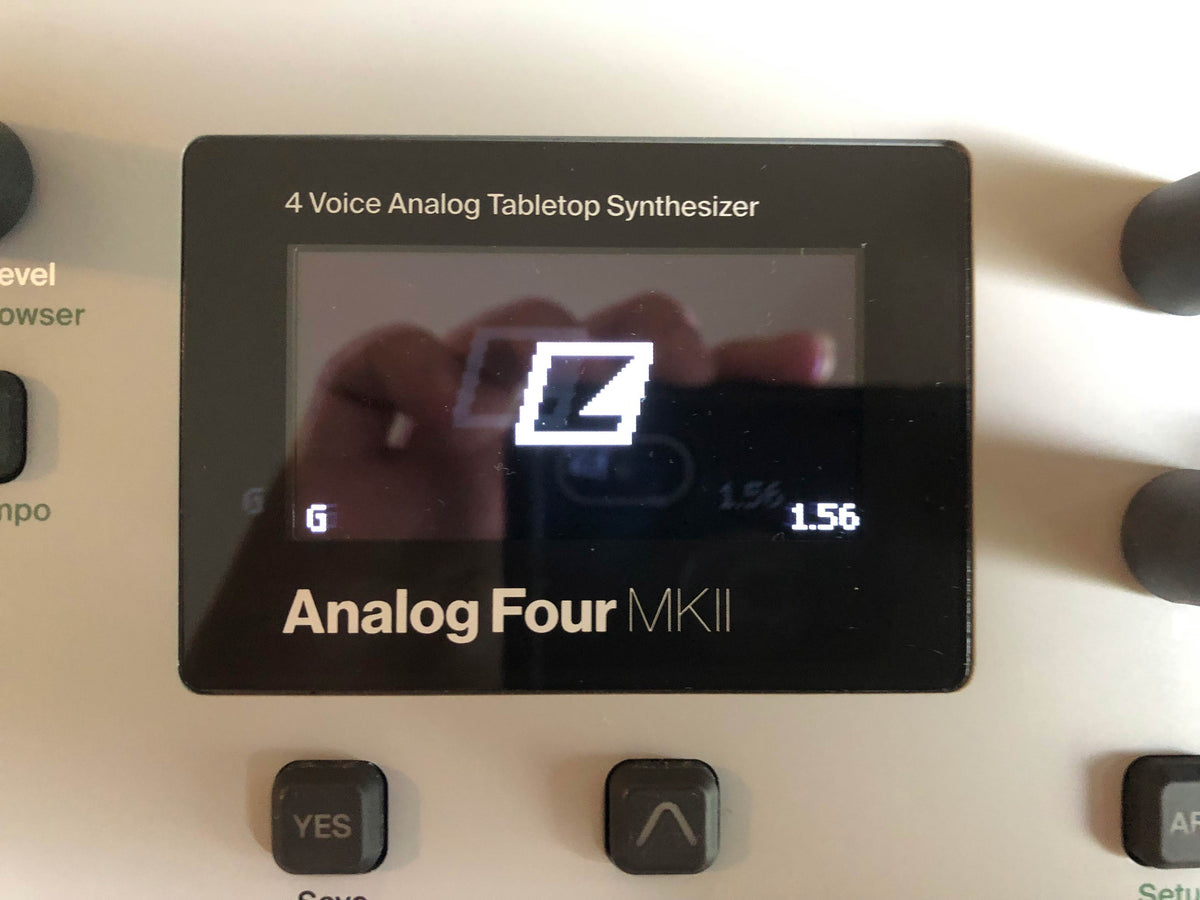

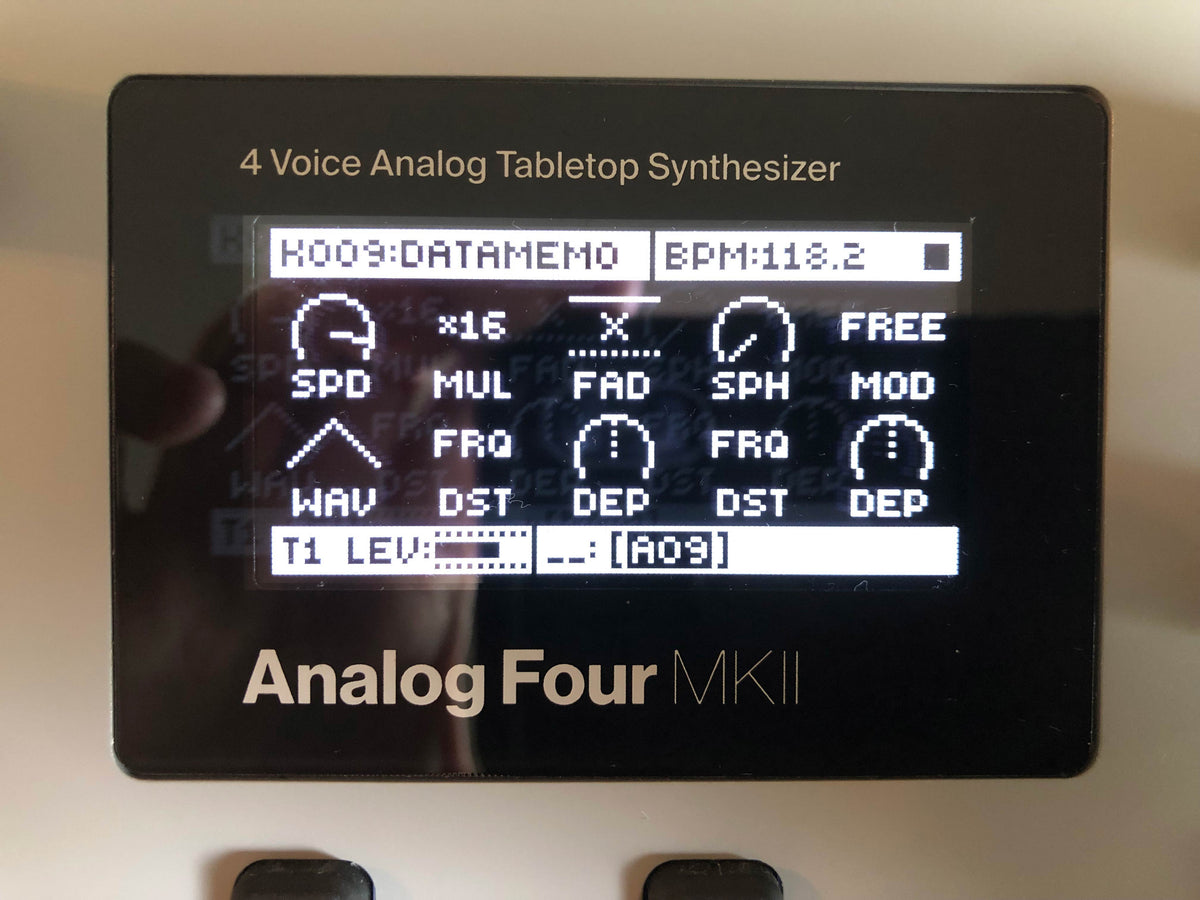

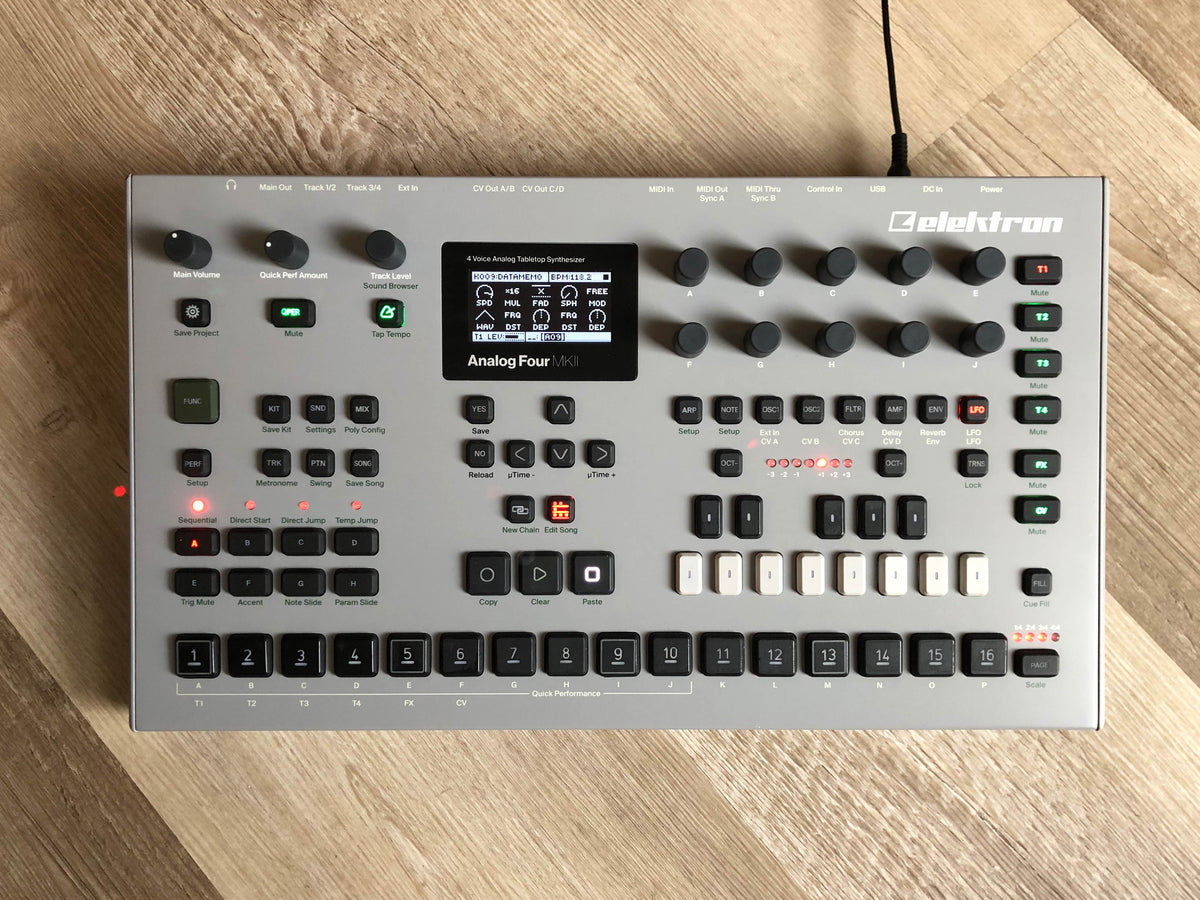

• Display & Build: 128 x 64 OLED display, high-resolution encoders, backlit buttons, and a cast aluminum enclosure.
• Dimensions & Weight: 385 x 225 x 82 mm, including knobs, jacks, and feet. Instrument weight is approximately 2.4 kg (5.3 lb).
• Power: 12V DC, 2A power supply. Typical consumption is 15W, with a 20W maximum.
