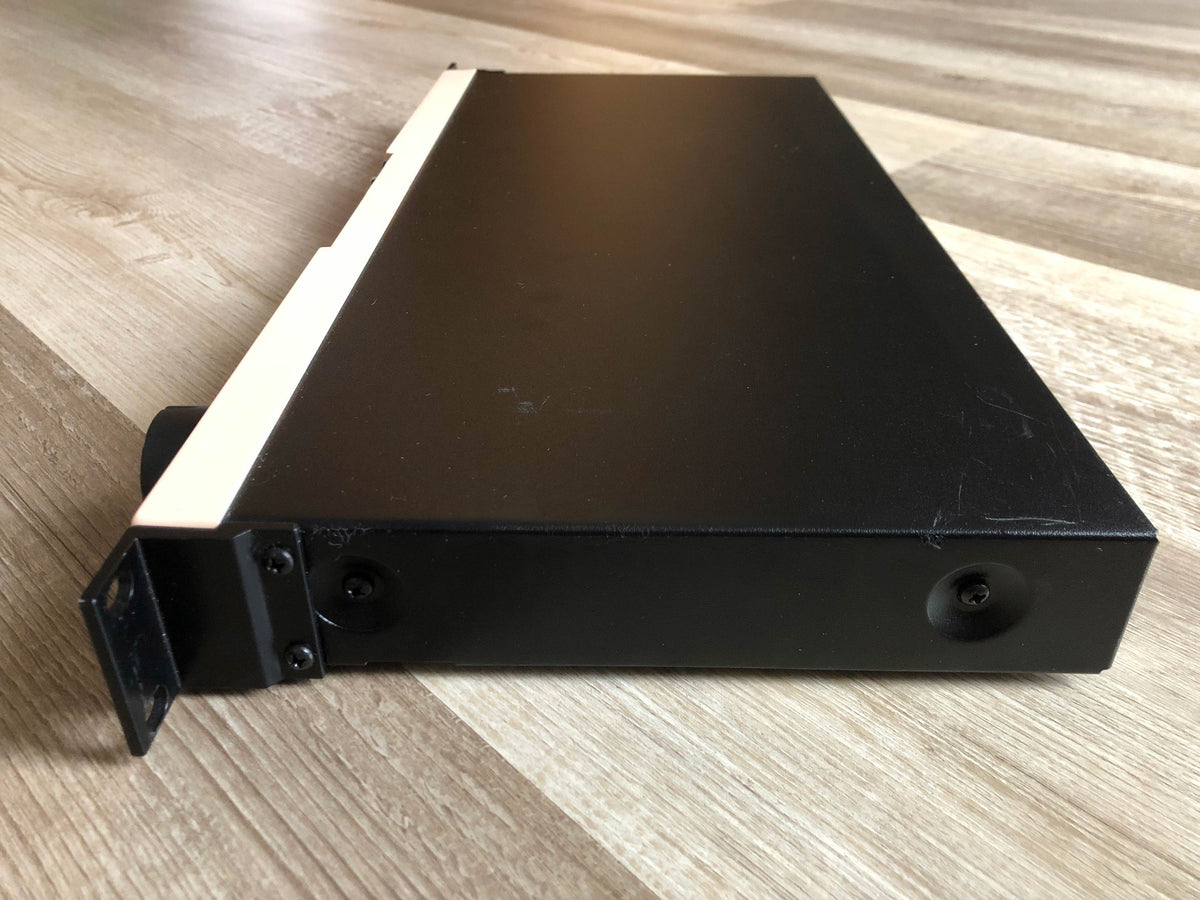

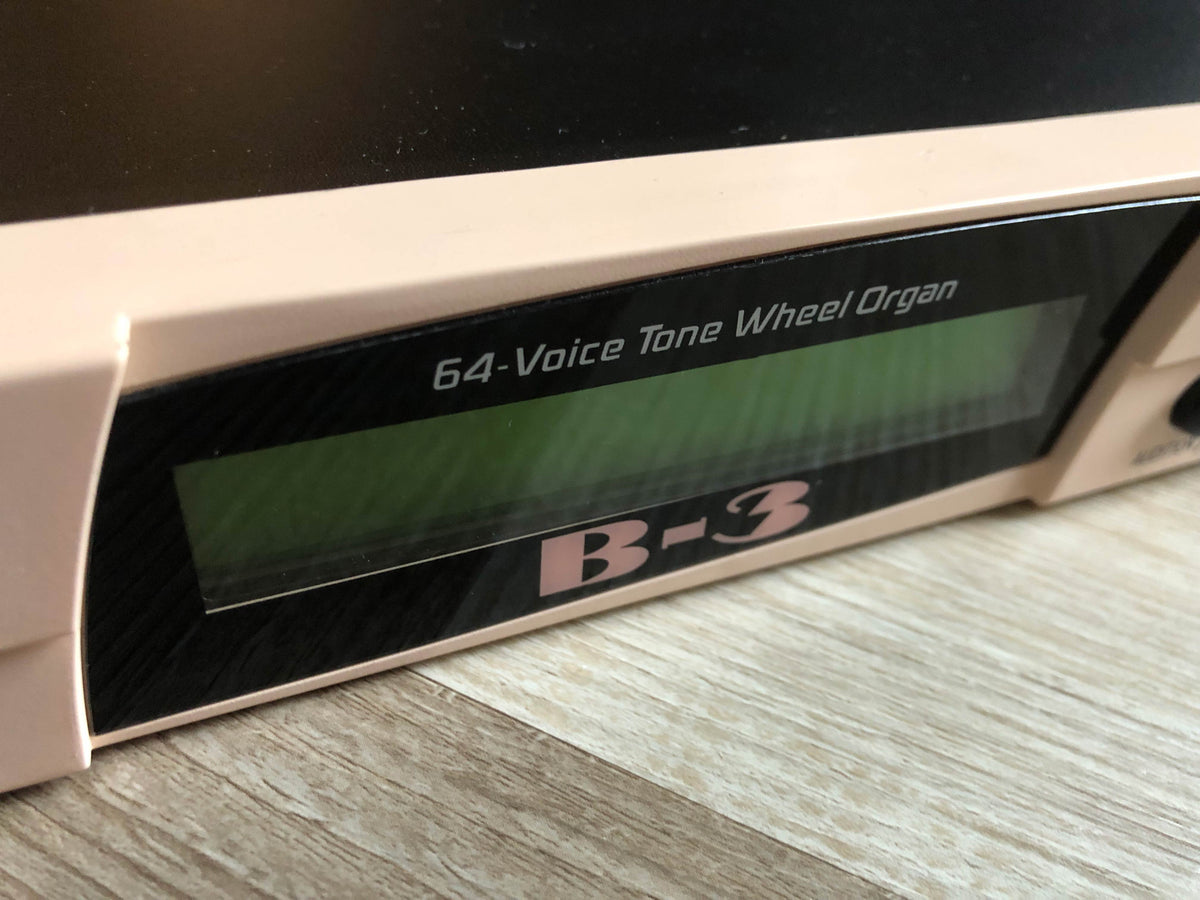

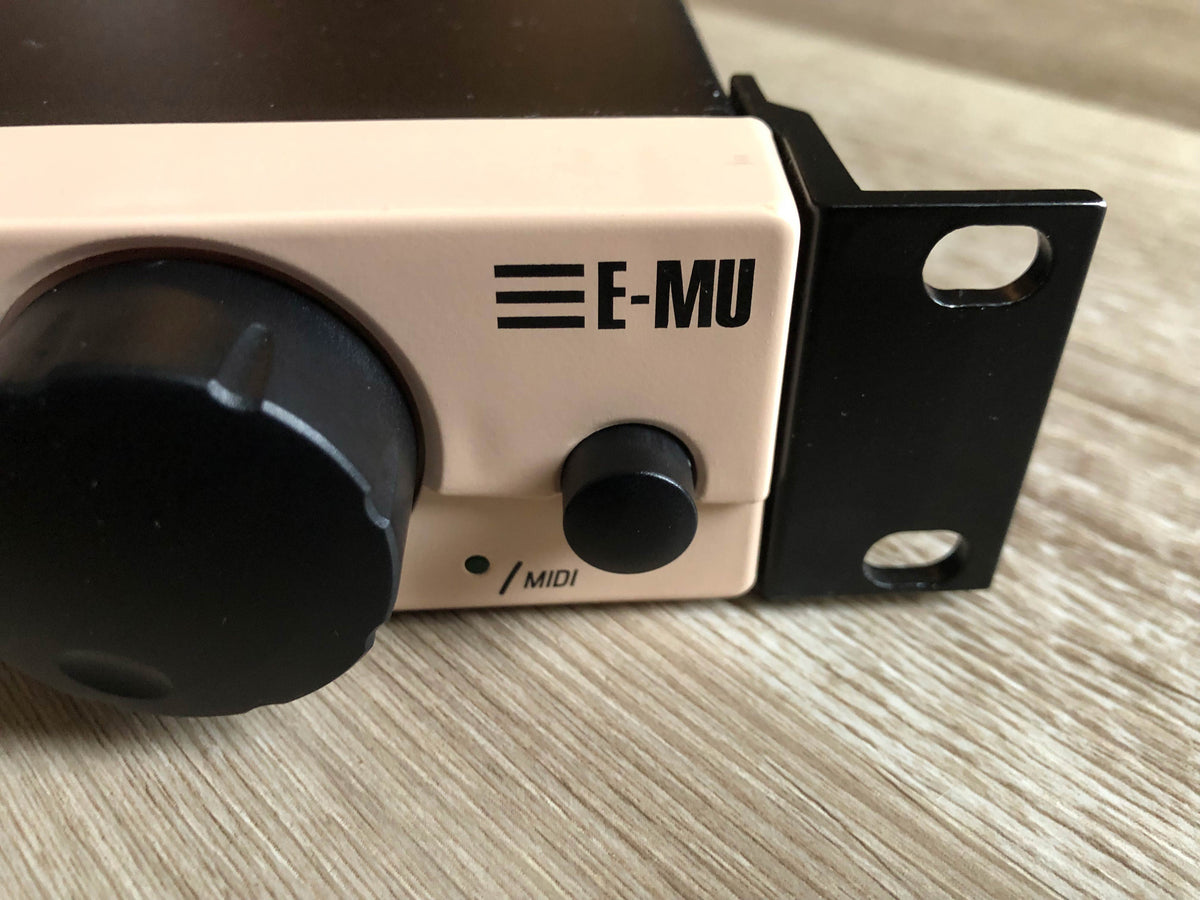

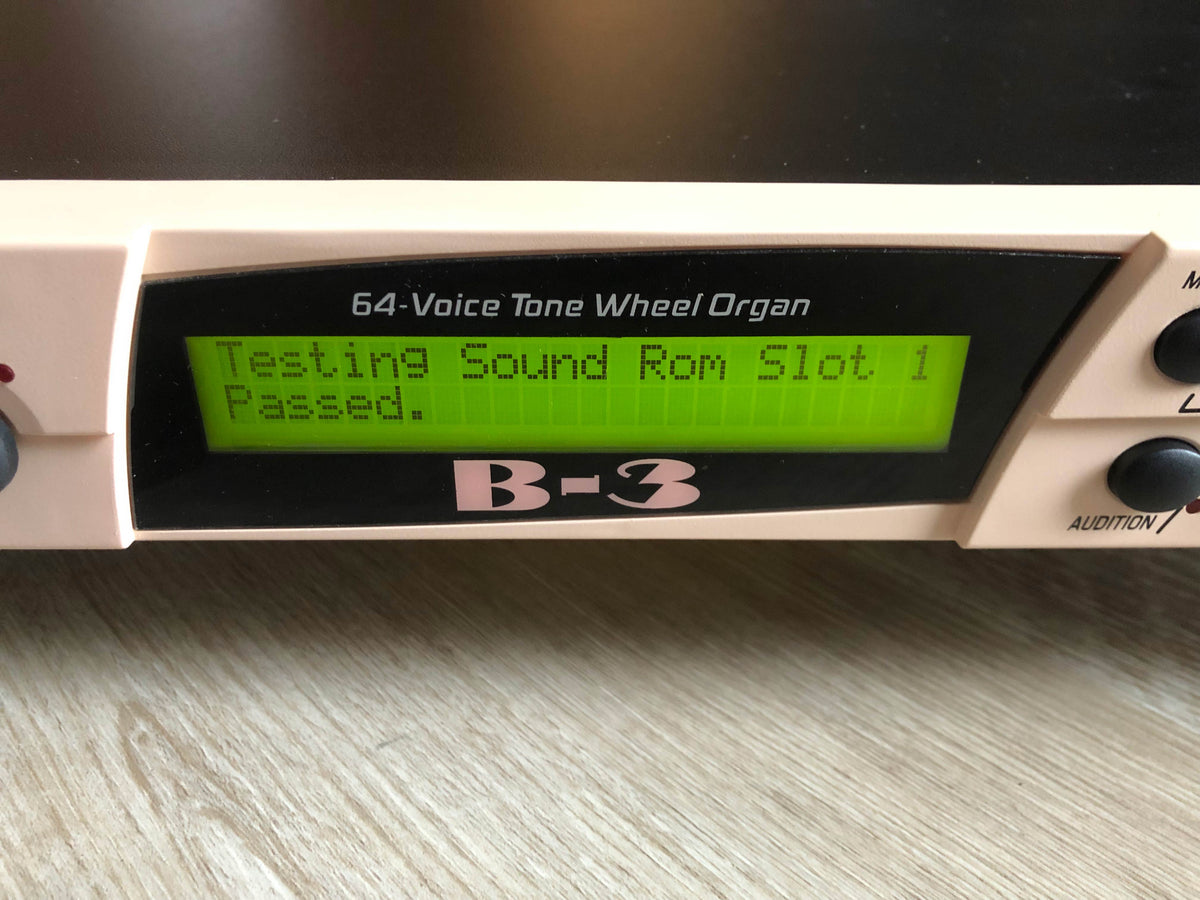

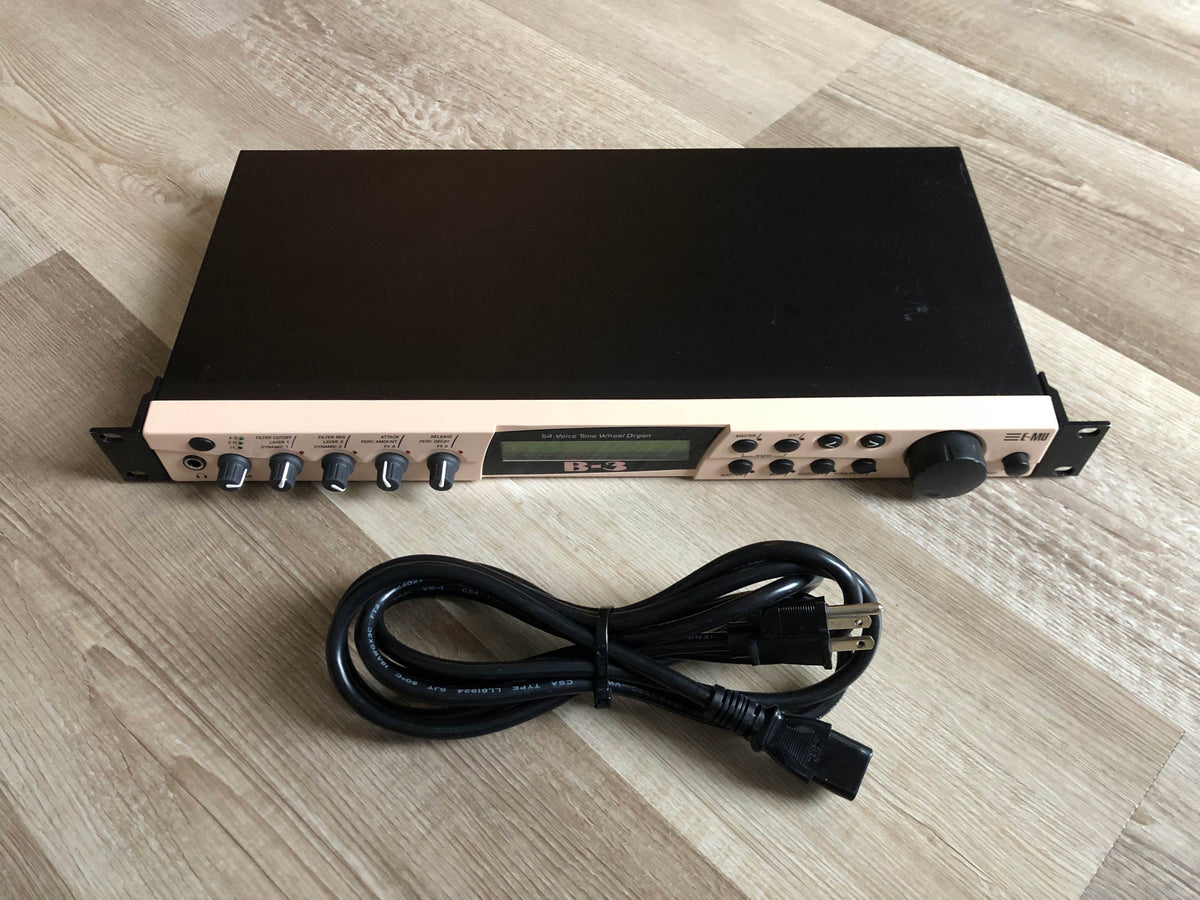

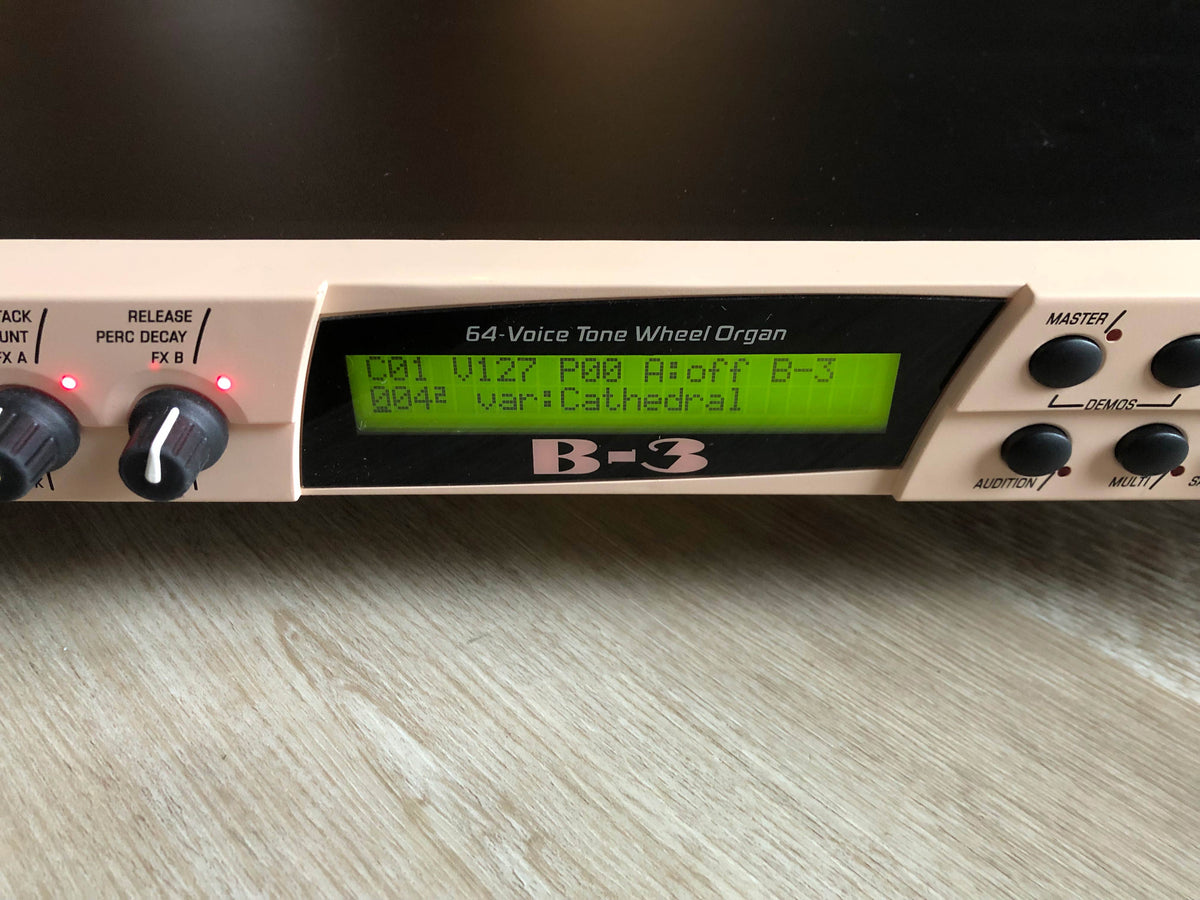

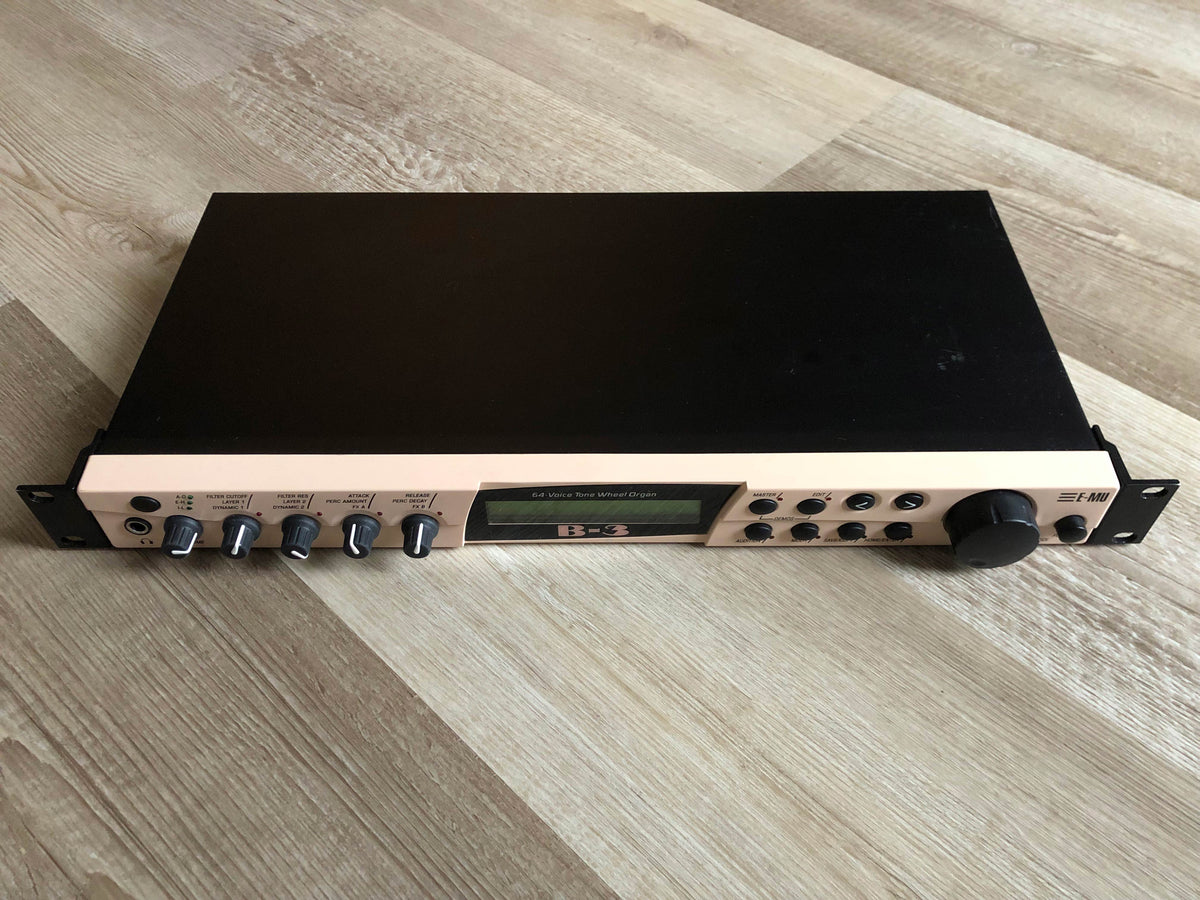

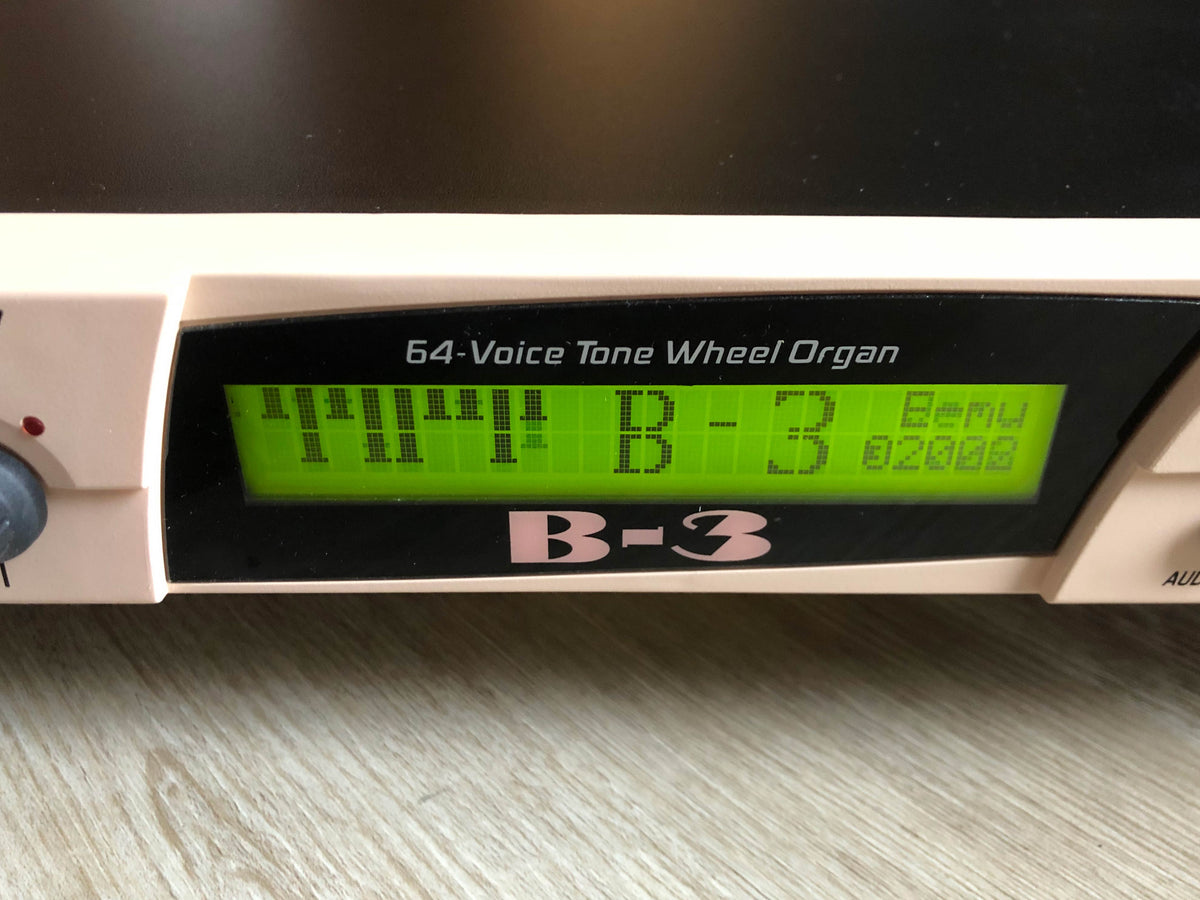

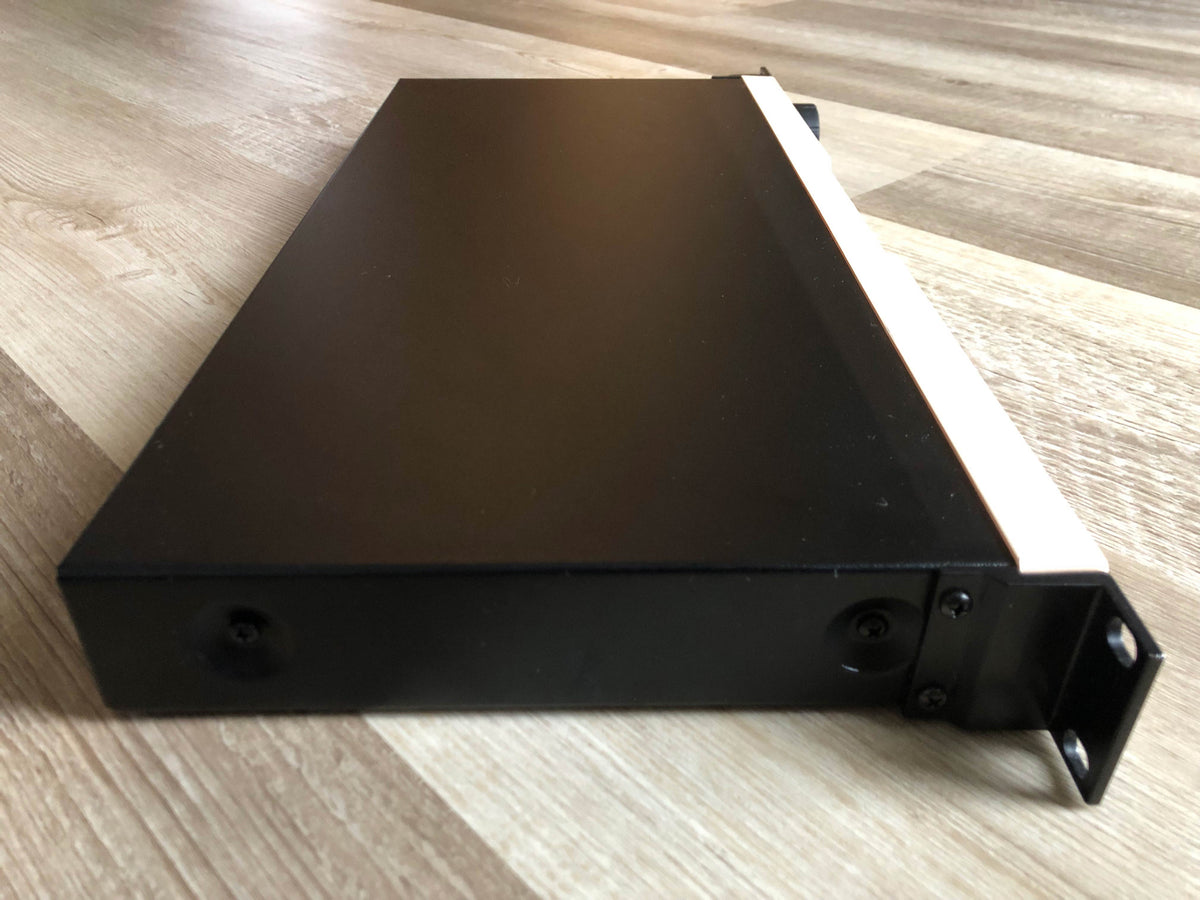

E-MU Systems B-3 Tonewheel Organ Sound Module in Beautiful Condition w/ New Encoder + Rack Ears

We strive for accuracy, but errors can occur. Please verify details or contact us with questions.

• Sound Engine:
  • Sample-based tonewheel organ synthesis in a 1U rack module.
  • 64 voices with 16-part multitimbral operation.
• Preset Architecture:
  • Four independently programmable layers per preset.
  • Key and velocity ranges, crossfading, and preset links support splits and complex combinations.
• Filters:
  • E-MU Z-plane filters, including resonant and formant responses.
• Envelopes & LFOs:
  • Three multistage envelopes and two LFOs per layer.
  • Tempo-based modulation supports rhythmic sound design.
• Modulation Routing:
  • 24 PatchCords per layer plus 12 at preset level.
  • Route envelopes, LFOs, MIDI controls, and processing functions to sound parameters.
• Effects:
  • Dual 24-bit effects processing.
  • Reverbs, delays, chorus, and other treatments with adjustable sends.
• Preset Memory:
  • 512 writable user presets.
  • Factory sounds and preset counts depend on the installed sound ROMs.

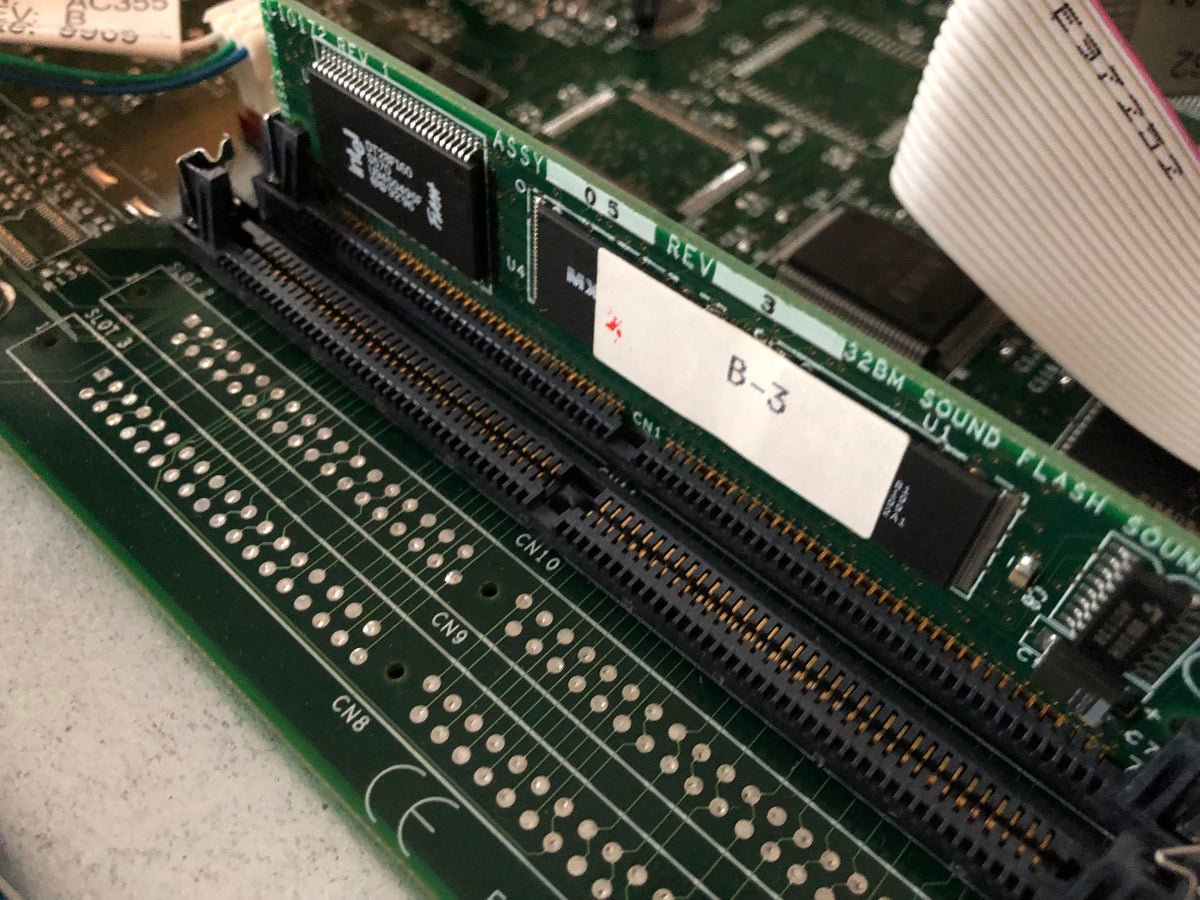

• ROM Expansion:
  • Two sound-ROM slots, supporting up to 64MB total.
  • Expansion capacity describes the hardware, not additional included ROMs.

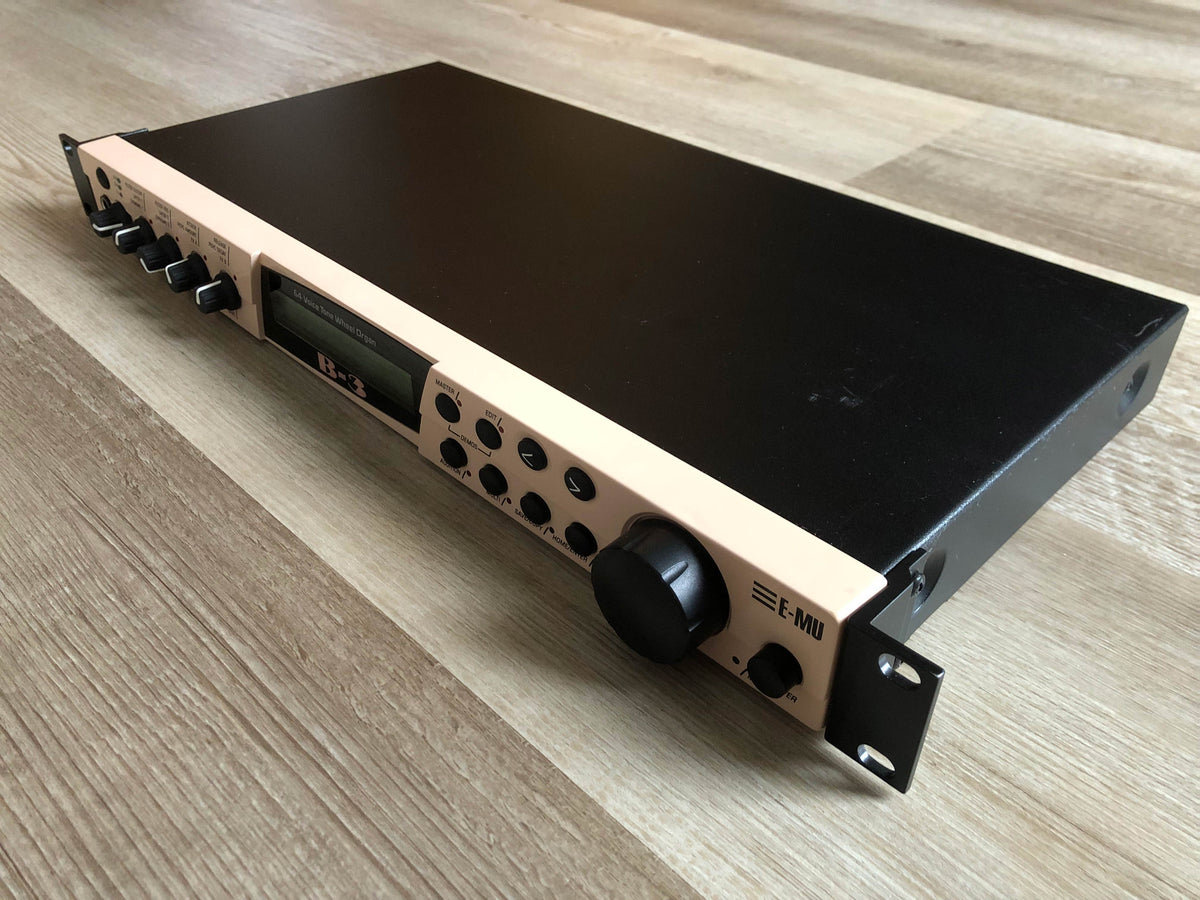

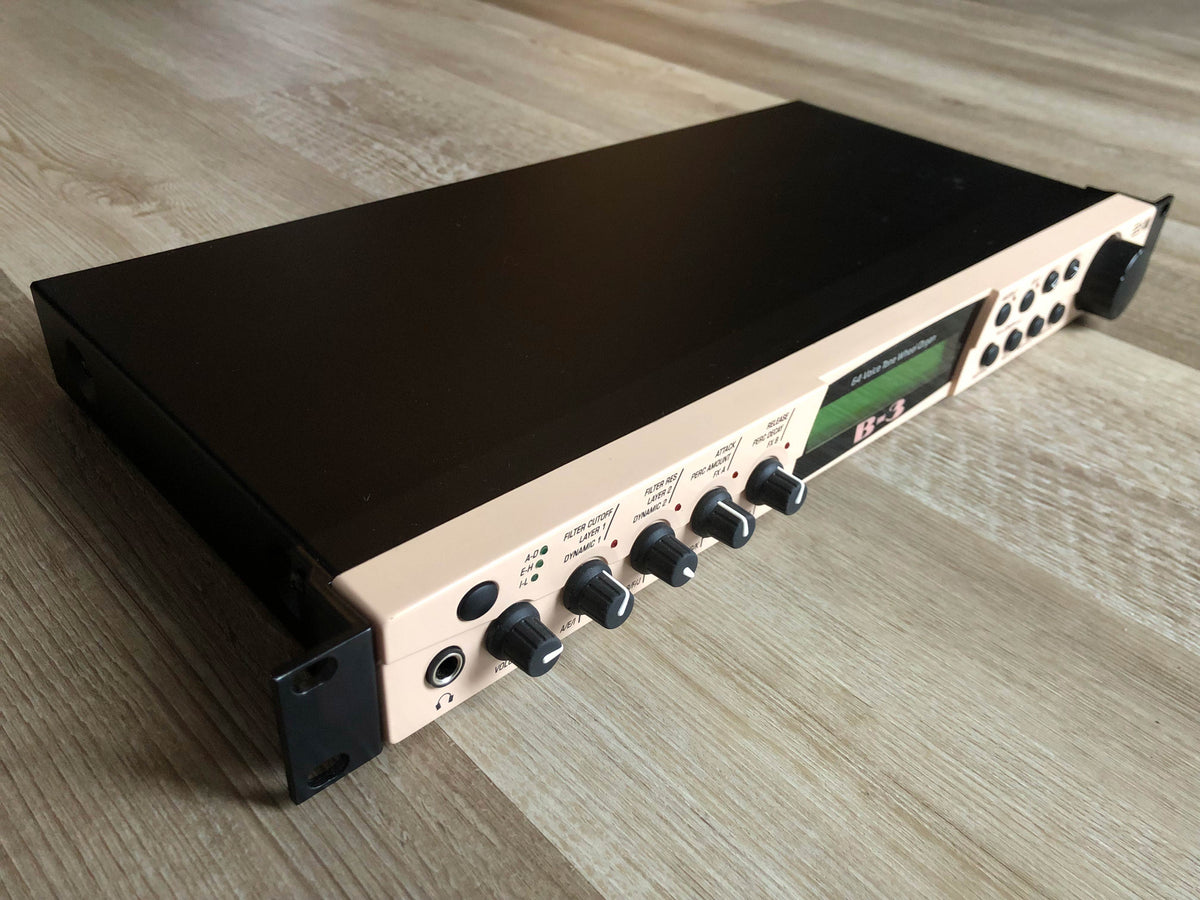

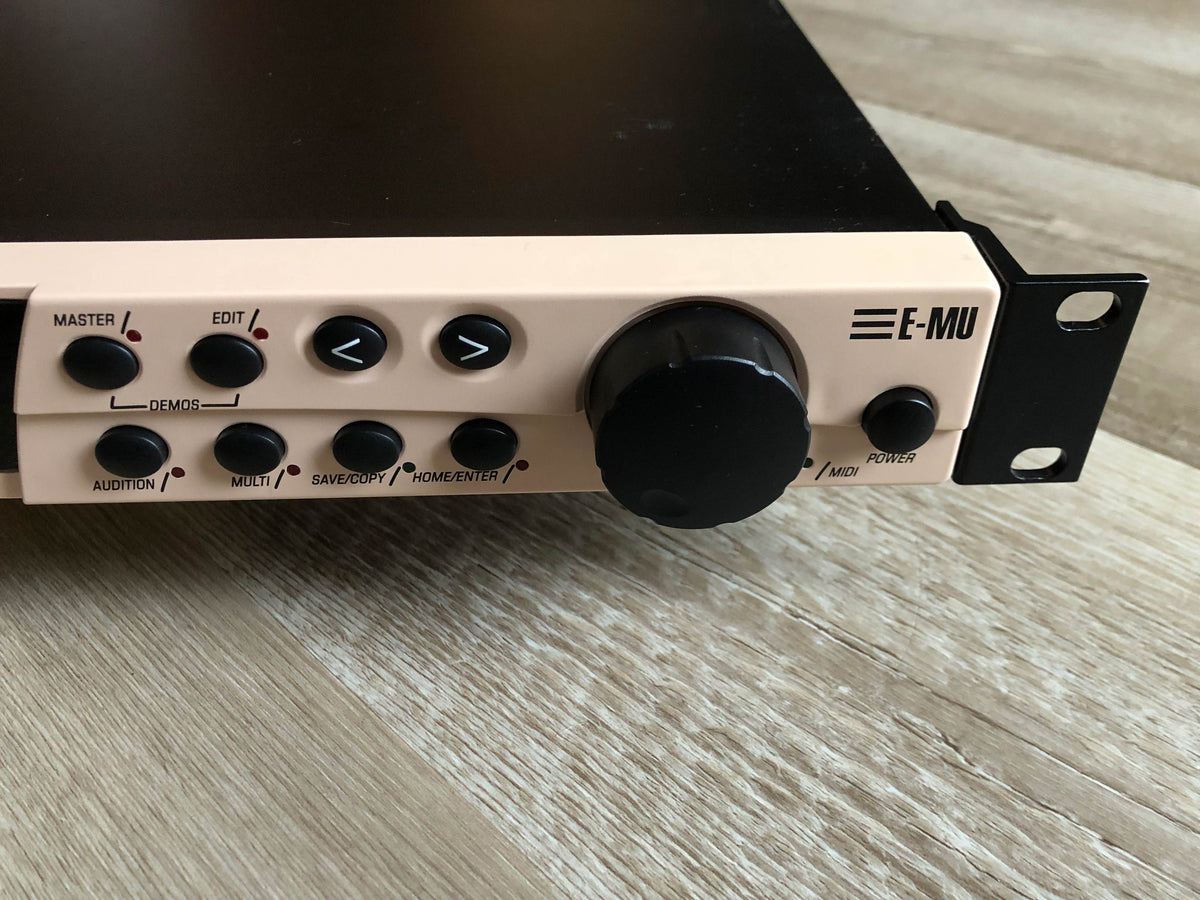

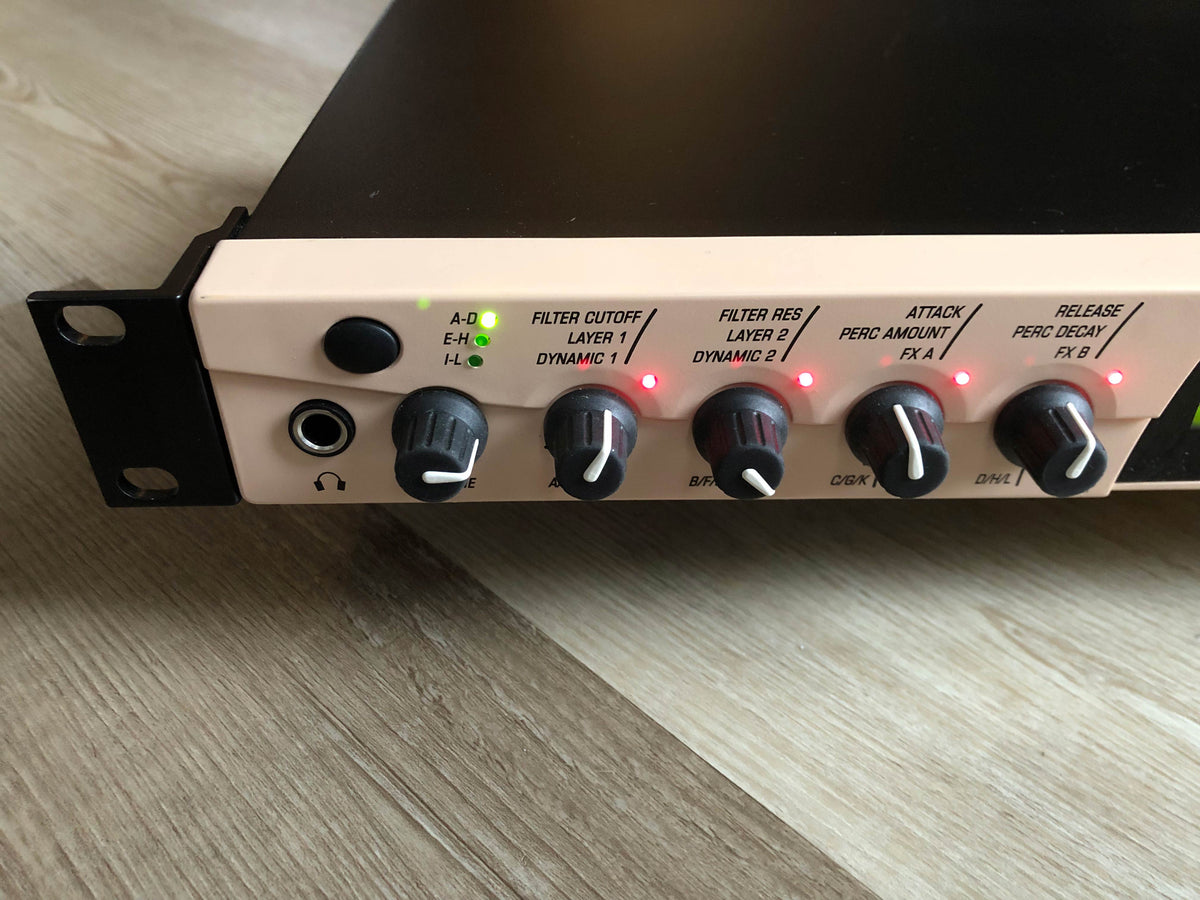

• Front-Panel Control:
  • Four knobs provide selectable control assignments.

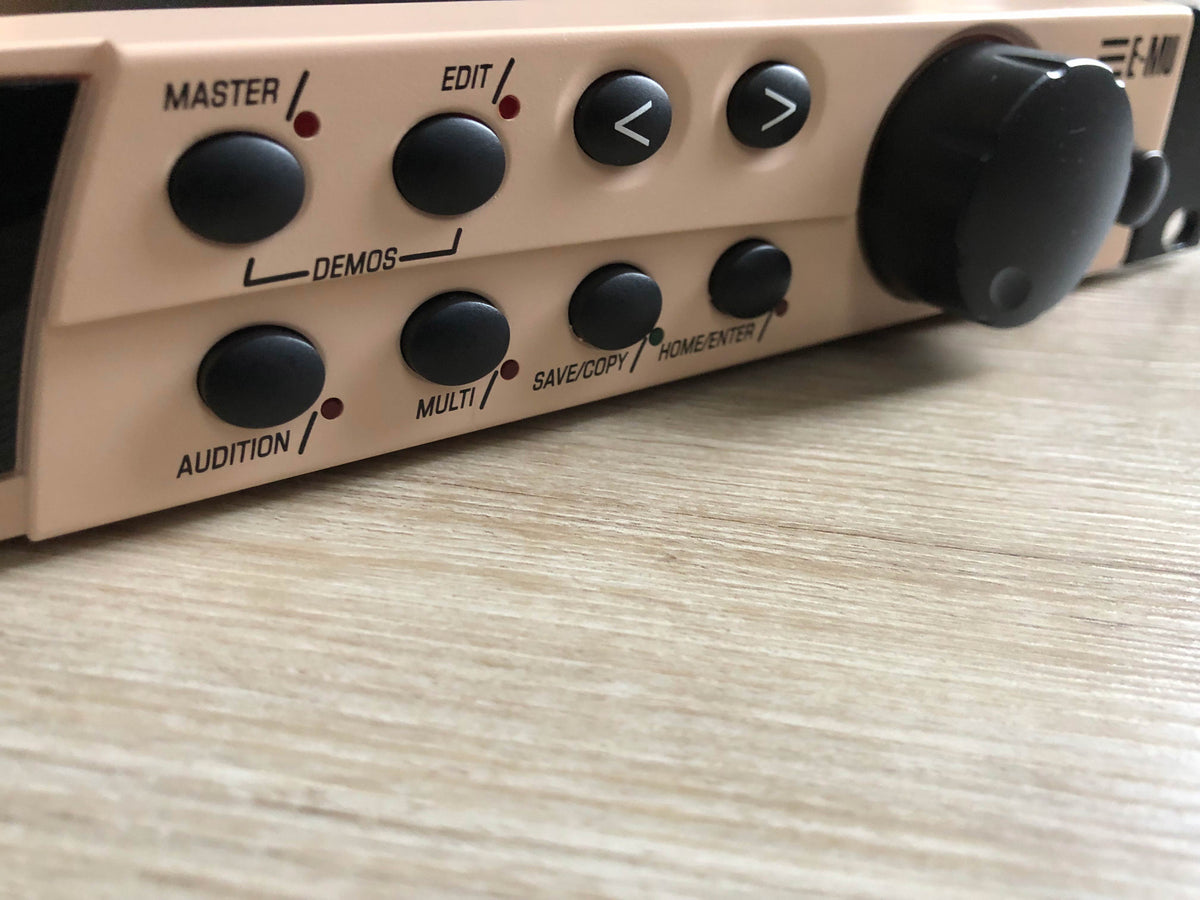

  • Audition and Sound Navigator help with browsing sounds.

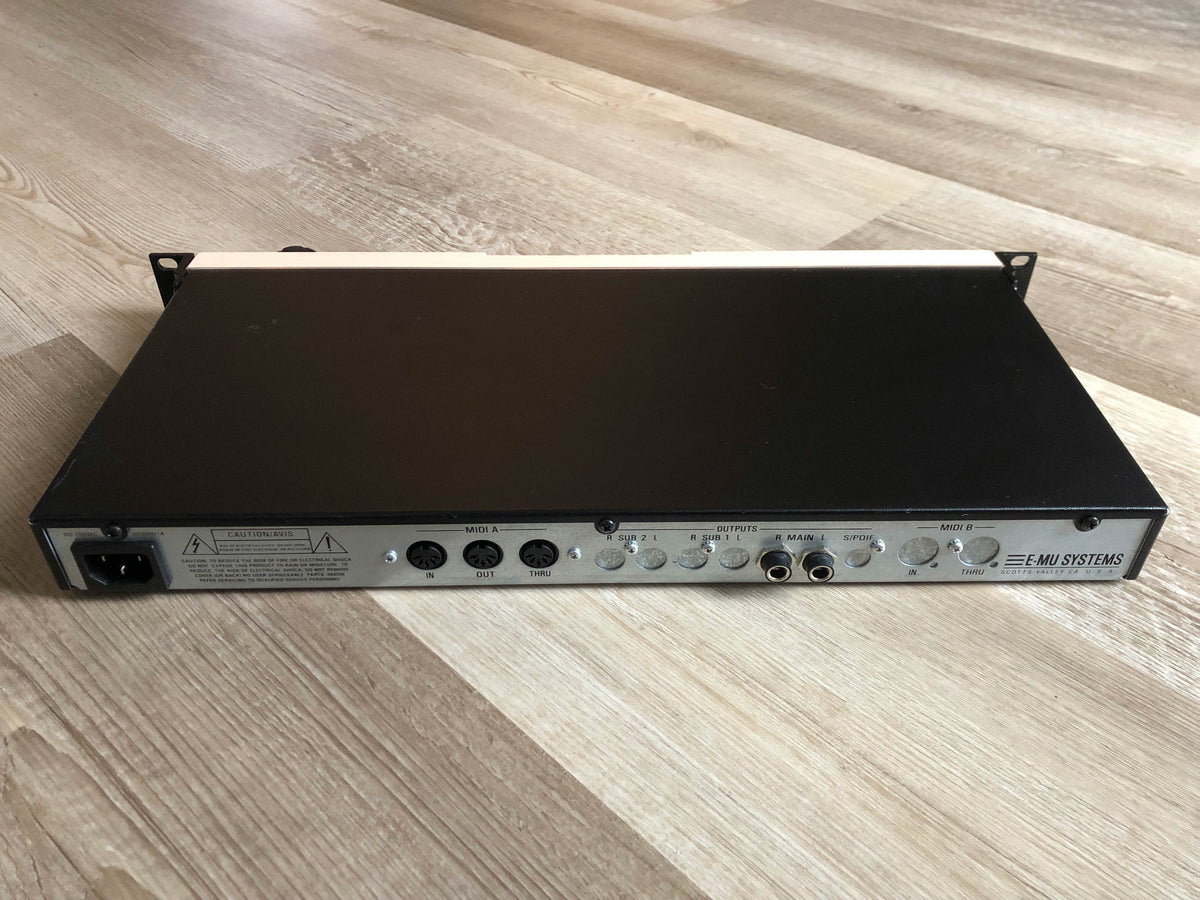

• MIDI:
  • MIDI input supports 16 channels.
  • MIDI output and thru connections support studio routing.
• Audio Outputs:
  • Two analog outputs form a stereo pair.

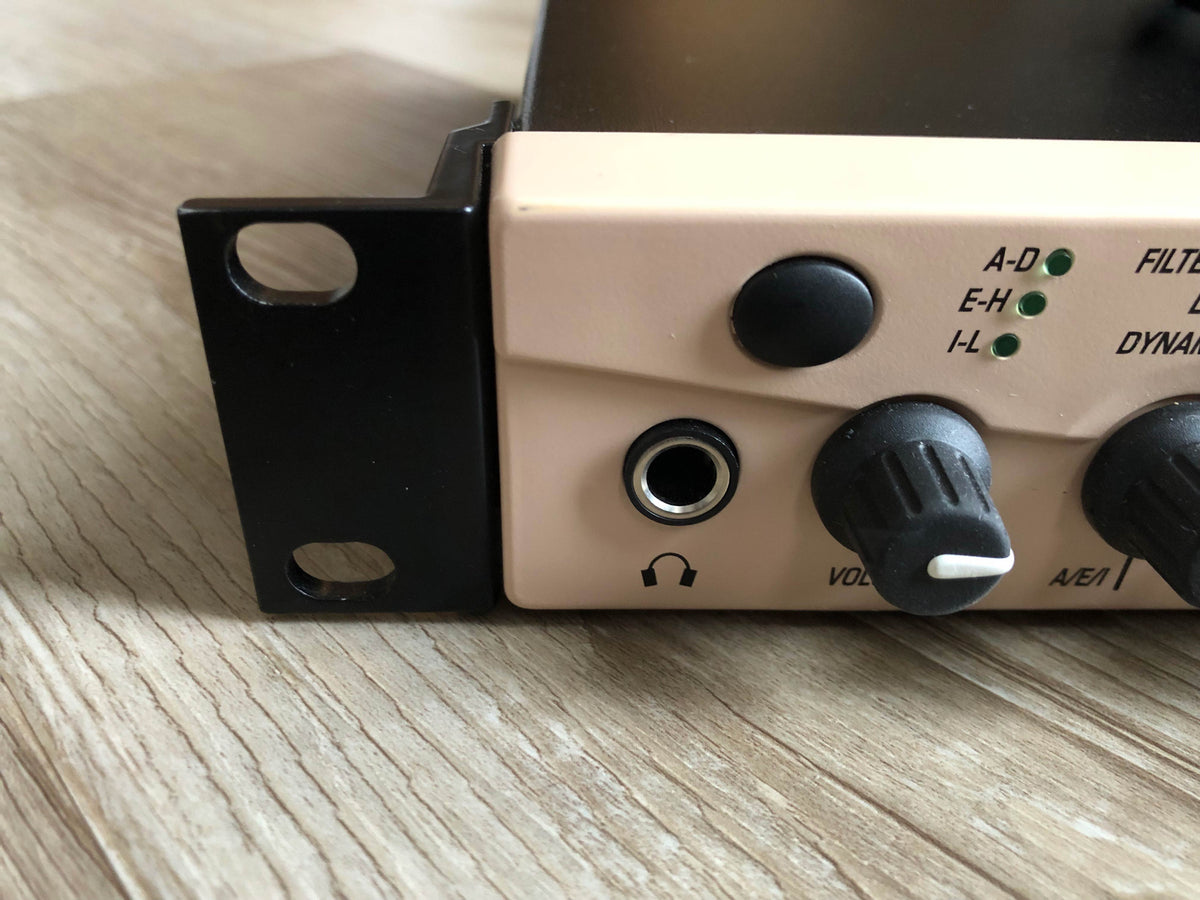

  • Front-panel headphone output.
• Studio Integration:
  • Sequence multiple parts from an external MIDI sequencer or DAW.
  • Rotating-speaker effects and single-trigger harmonic percussion support organ performance.
